Prime Series

Prime Series
Rental Outdoor & Indoor LED Display Screen
Dimension: 500*500*106mm
Pixel Pitch Indoor: (Mini LED 1.5mm, 1.8mm)2.6mm, 2.9 mm, 3.9 mm, 4.8 mm
Pixel Pitch Outdoor: 3.9 mm, 4.8 mm
Applications: Concerts, Auto Show, Outdoor Stage Background, Expo, etc.

Main Features:
● Magnetic panel system
● Strengthened corner protection ● Rigging & stacking installation
● Curving system achievable
● Easy maintenance

Category:

Products

Events &Staging LED Display

Contact Now

Product Description

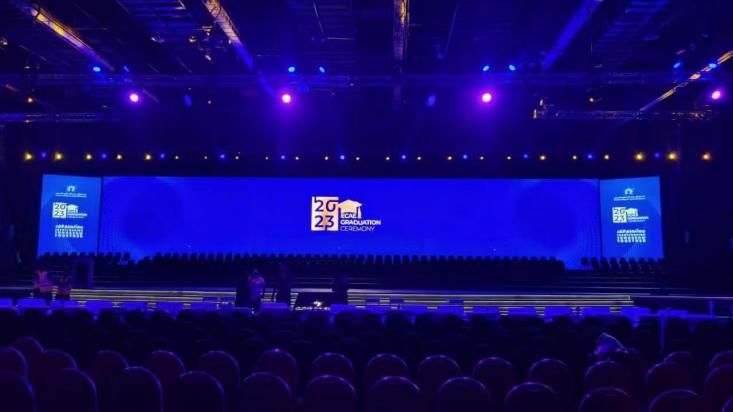

Multi-scenario Application
The Brighten Prime Series as your best choice for both indoor and outdoor events use LED Display , delivers indoor-outdoor brilliance with IP66-rated durability and sun-defying 3,500nits brightness. Featuring seamless splicing and cloud-controlled content management, this 4K HDR display (7,680Hz refresh) adapts to retail windows, stadiums, and pop-up events. Military-grade aluminum frame withstands -30°C~55°C extremes while 3-min magnetic assembly revolutionizes installations. Where agility meets pixel perfection.

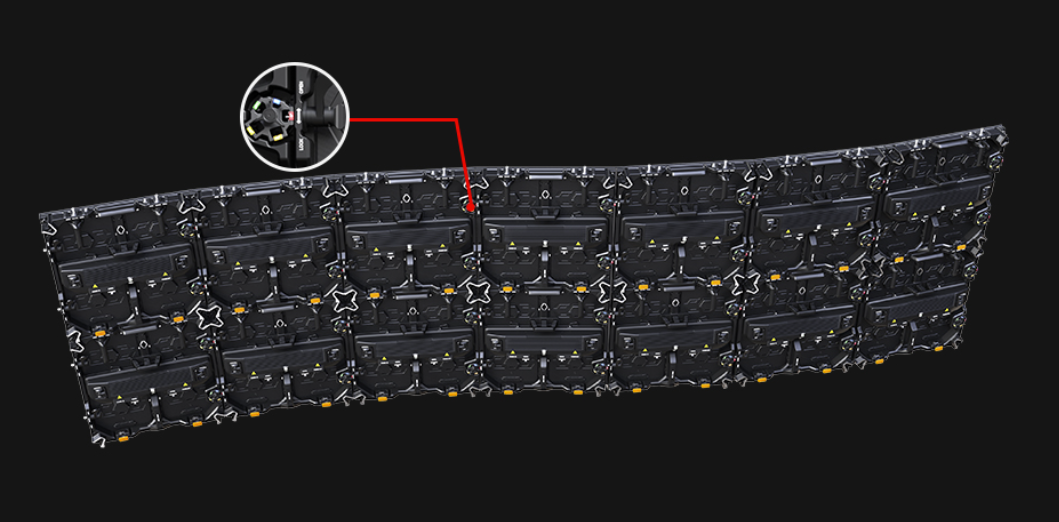

Wave Screen Available：

Innovative sidelock design enables concave and convex installation with 5 different angles:Innovative sidelock design brings fast,stable and accurate installation

Solid Implantation：

The Brighten Prime Series uses Solid 4 in 1 LED Screen encapsulation. It's durable, touchable, scratch-resistant and non-glare. Ideal for indoor and outdoor use, it ensures long lifespan and clear visuals in any setting.

One for all solution

We have two models for you to choose from.Prime pro max and Prime plus share corner - related features, curve ability, and rigging/stacking support. But, Prime Plus has 4000 - 6500nits brightness, 3840Hz refresh, and IP66. Prime Pro Max has 3500nits, 7680Hz refresh, and IP65.To meet your diverse needs

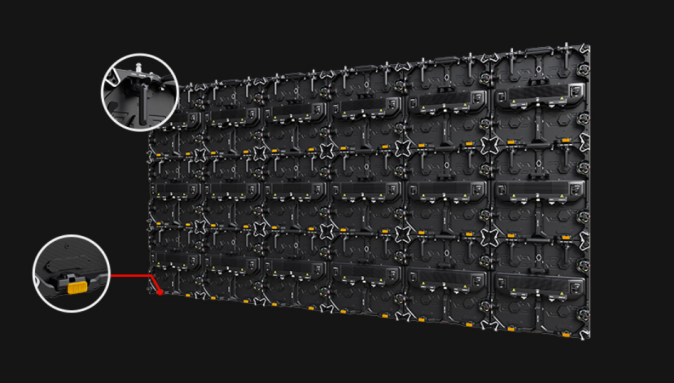

Easy Installation:

One-man Installation within 3 Seconds
One-man to complete the installation
Automatic Lock System

Technical Parameters

Model name	PM-MPM2.9	PM-MPM3.9	PM-MPM4.8
Pixel Pitch (mm)	2.97mm	3.91mm	4.81mm
Pixel Density (dot/m²)	112,896	65,536	43,264
LED Arrangement	SMD1415(black)	SMD1921(black)	SMD1921(black)
Module Size (mm*mm)	250*250	250250/250500	*250250/250500*
Module Resolution(PX*PX)	84*84	6464/64128	*5252/52104*
Drive Mode	Constant current	Constant current	Constant current
View Angle(Deg)	Horizontal 160/Vertical 120	Horizontal 160/Vertical 120	Horizontal 160/Vertical 120
Brightness(cd/m2)	3,000-3,500	3,500	3,500
GreyScale(bit)	16	16	16
RefreshRate(Hz)	7,680	7,680	7,680
Receiving Card (Optional)	Novastar A5S Plus /A8S-N/A10S Pro
Cabinet Poer Consumption(W/M²)	Maximum<750,Average<220	Maximum<750,Average<220	Maximum<750,Average<220
Cabinet Size (mm*mm)	500*500	*500500/5001,000*	*500500/5001,000*
Cabinet Weight (Kg/PCS)	8.3	8.3/12.2	8.3/12.2
Input Voltage (V)	AC:110-220V
Waterproof Level	IP65
Working Environment	Outdoor
Maintenance type	Rear
Certificates	CE(LVD、EMC),ETL

Related Application

Location: Lagos The Redeemed Christian Church of God
Pixel Pitch :2.9mm
Screen Size :48sqm

Location: Audi Booth Auto Show SH
Pixel Pitch :3.9mm
Screen Size :120sqm

Related Products

Prime Series

PS series is Micro-pitch display utilize Flip-chip-on-board technology and cutting-edge 3D inkjet printing technology to give the screen an unprecedentedly smooth touch, and also significantly improves the screen's light-emitting efficiency by 20%. The display ensures high brightness, high resolution, and long-lasting durability. Whether it's a command-and-control center, high-end commercial display, or visual data center and other professional display scenarios, the product can meet the strict requirements for high-quality display and provide users with high-quality and efficient visual solutions.

S Series

The S Series has the ability to display high-quality content in indoor environments with exceptional clarity and detail. Their flexibility in size and shape allows them to be configured to fit almost any space, at right angles or tilted to create unique and visually stunning installations. Lt provides versatile, high quality and durable solutions for a wide range of indoor video display applications.

All in One COB LED Display for Conference

All-In-One Conference Led Display is a comprehensive solution that combines all necessary components into a single, easy-to-use platform for delivering presentations or content. This setup is particularly useful for events like conferences, webinars, or seminars where multiple presenters or speakers need to be displayed simultaneously.

Horizon Mini 4 in 1 Events & Staging LED Display

Mini 4 in 1 have been approved be the best technology choice for events model below 2.9mm . The biggest pain points for events panel like 2.5mm , 1.5mm the LED lamps are very tiny , very fragile and easy damage , while events assemble and disassemble , also the road transportation will damage the LED lamp easily , because it is tiny chips , maintain give a big challenge . Mini 4 in 1 as 4 lamps in one soldering plate ,which have bigger soldering plate for bigger strength can suffering 14kg outer-force , solved the biggest pain points for fine pitch event models , We developed the color contrast of 4 in 1 , the color performance is vivid ,viewing angle almost 180 degree could support the high profile conference presentation request.
