Horizon Mini 4 in 1 Events & Staging LED Display

Dimension: 500 × 500 × 80mm
Pixel Pitch: 1.9mm, 2.6mm, 2.9mm, 3.9mm
Applications: Stage, Convention Centers, Exhibitions, Live Events, Concerts, etc.

Key Features:
● Magnetic Connection System
● Modular Structure Design
● 90° Corner Splicing Compatibility
● Versatile Mounting Options (Hanging/Stacking)
● Dual-Access Maintenance (Front/Rear)

Category:

Products

Events &Staging LED Display

Contact Now

Product Description

Mini 4 in 1 have been approved be the best technology choice for events and staging LED Screen for pixel pitch below 2.9mm . The biggest pain points for events panel like 2.5mm , 1.5mm the LED lamps are very tiny , very fragile and easy damage , while events assemble and disassemble , also the road transportation will damage the LED lamp easily , because it is tiny chips , maintain give a big challenge .
Mini 4 in 1 as 4 lamps in one soldering plate ,which have bigger soldering plate for bigger strength can suffering 14kg outer-force , solved the biggest pain points for fine pitch event models ,
We developed the color contrast of 4 in 1 , the color performance is vivid ,viewing angle almost 180 degree could support the high profile conference presentation request.

The best choice for events model below 2.9mm , an ideal choice for mini 2.6mm , 1.9mm , 1.5mm for high profile events, electronic side Spec.

Up to 1500nits

7680Hz refresh rate

12000:1 color contrast

16bit grey scale

99.9% DCI-P3

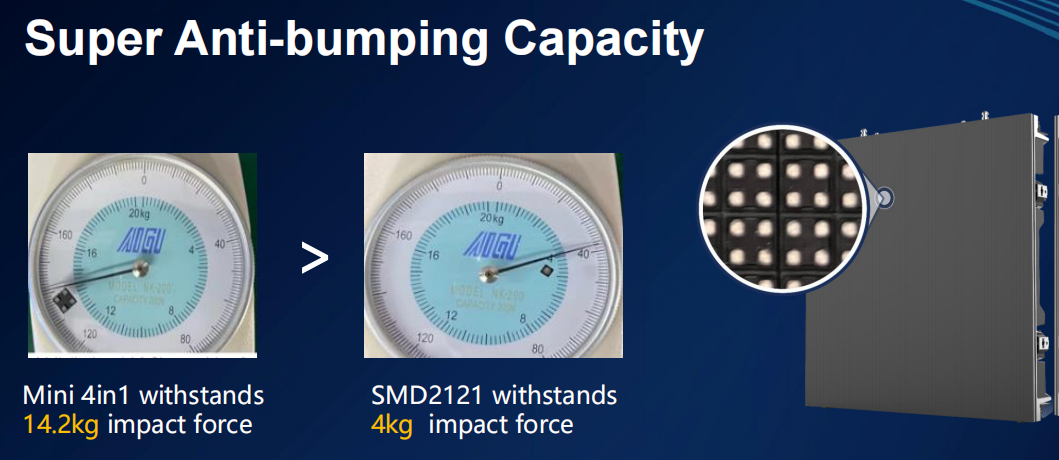

Mini 4 in 1 Strength withstands 14.2kg impact force

Mechanical Side

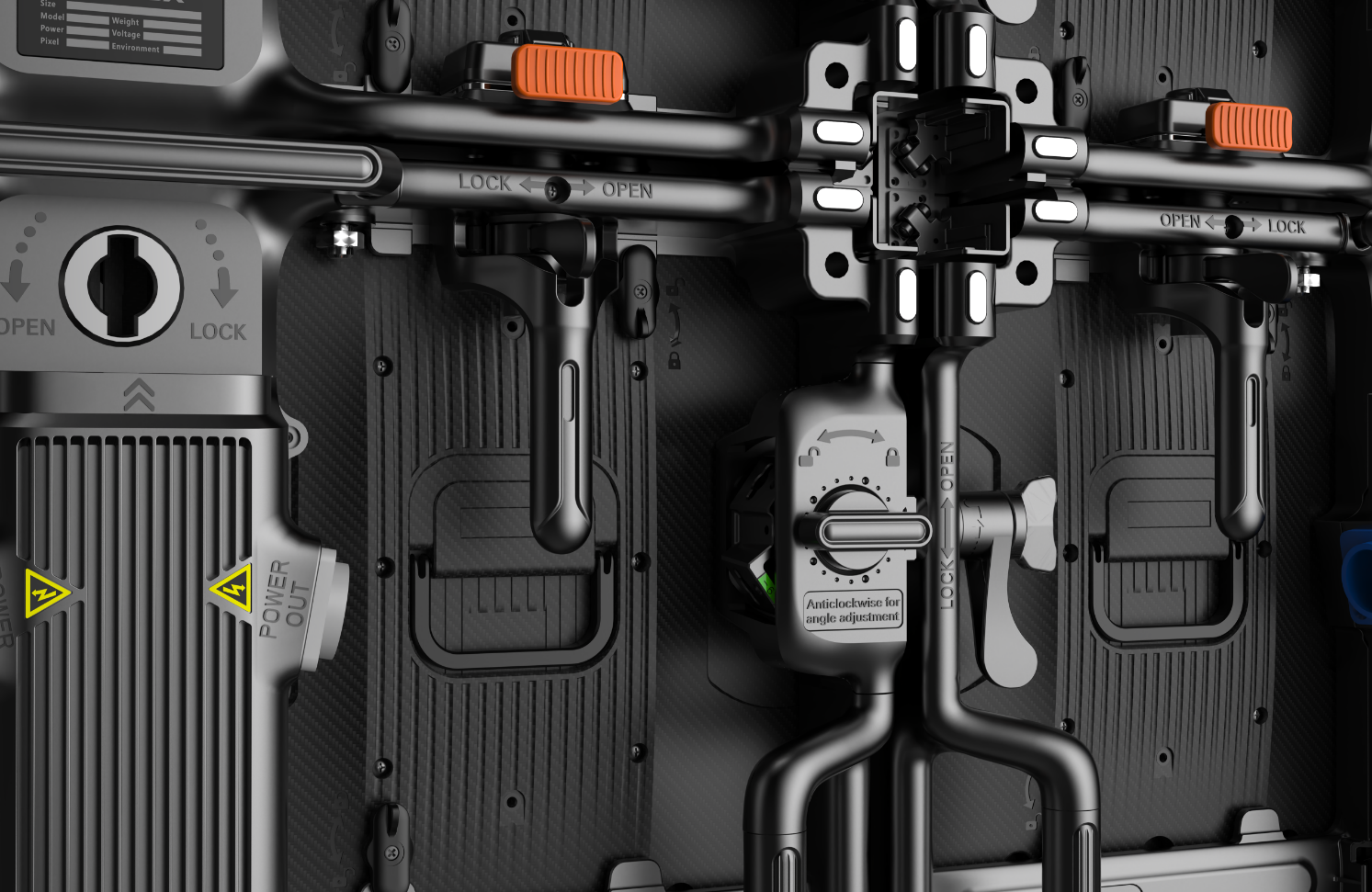

Unique Arc lock system**
- Fast: Angle adjustment & one step
- Accurate: Dual precise positioning design, presenting

seamless splicing of small spacing
- Unique: Unique, distinctive, innovative invention and design

Technical Parameters

Model Name	HZ-1.95Mini	HZ-2.6	HZ-2.6Mini	HZ-2.9	HZ-3.9
Pixel Pitch(mm)	1.95	2.6	2.6	2.9	3.9
Pixel Density(dot/m²)	262,144	147,456	147,456	112,896	65,536
LED Sealing Type	Mni 4in1	SMD2121	Mini 4in1	SMD2121	SMD2121
Module Resolution(PX*PX)	128*128	96*96	96*96	84*84	64*64
Module Size(mm*mm)	250*250	250*250	250*250	250*250	250*250
Module Weight(kg)	0.65	0.65	0.65	0.65	0.65
Module Thickness	22mm	22mm	22mm	22mm	22mm
Contrast Ratio	10,000:1/12,000:1	10,000:1	10,000:1/12,000:1	10,000:1	10,000:1
Drive Mode	Constant Current	Constant Current	Constant Current	Constant Current	Constant Current
Horizontal Viewing Angle(Deg)	160	160	160	160	160
Vertical Viewing Angle(Deg)	140	140	140	140	140
Brightness(cd/m²)	1,300/1,500	800-1,000	1,300/1,500	800-1,000	800-1,000
Grey Scale(bit)	16	14	14/16	14	14
Refresh Rate(Hz)	3,840/7,680	3,840	3,840/7,680	3,840	3,840
Max Power Dissipation(W/SQM)	<500/<560	<440	<500/<570	<440	<450
Average Power Consumption (W/SQM)	<150/<168	<135	<150/<170	<135	<135
Cabinet Size(mm*mm)			500*500
Cabinet Weight(Kg)			7.8
Cabinet Thickness(mm)			80
Input Voltage(V)			AC110-220V
Working Temperature(℃)			-20~+50℃
Working humidity(RH)			10%~90%
Waterproof Level			IP20
Working Environment			Indoor
Maintenance type			Front/Rear

Related Application

Location: Lagos The Redeemed Christian Church of God
Pixel Pitch :2.9mm
Screen Size :48sqm

Location: Audi Booth Auto Show SH
Pixel Pitch :3.9mm
Screen Size :120sqm
