S Series

The S Series has the ability to display high-quality content in indoor environments with exceptional clarity and detail. Their flexibility in size and shape allows them to be configured to fit almost any space, at right angles or tilted to create unique and visually stunning installations. Lt provides versatile, high quality and durable solutions for a wide range of indoor video display applications.

S Series Product Features
(1)90 degree right angle design: seamless right angle installation.
(2) Magnetic mounting installation: easy to install and disassemble, cube design, 500x 500mm cabinet supports the perfect cube shape.
(3) Hard connection: easy to maintain. The full hard connection internal cable-free design, which is very stable,easy and comprehensive front maintenance.
(4) Diversified sizes: The die-cast aluminum cabinet has a wealth of sizes, which can be customized for splicing according to requirements.
(5) Various installation methods: rigging, wall mounting, floor mounting and wall mounting strip installation.
(6) Dual backup: support signal, power dual backup (only 1000*500mm cabinet support).
(7) Calibration: module with calibration function, which can realize the correction of brightness
(8) Support Rubik's cube display: 500×500mm cabinet can be cut on four sides to support the perfect cube shape display.

Category:

Products

DOOH LED Display

Contact Now

Product Description

The S Series as Indoor LED Display for fixed installation use has the ability to display high-quality content in indoor environments with exceptional clarity and detail. Their flexibility in size and shape allows them to be configured to fit almost any space, at right angles or tilted to create unique and visually stunning installations. Lt provides versatile, high quality and durable solutions for a wide range of indoor video display applications.

Indoor SlimLUX Panel

"Redefine Space, Amplify Vision"

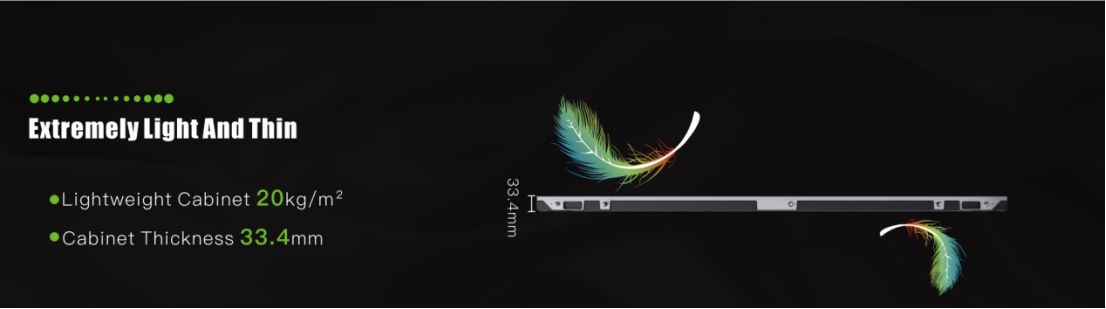

SlimLUX LED Panels revolutionize display solutions with groundbreaking 33.4mm ultra-thin profile. Engineered for modern venues, our seamless 4K displays (P1.95-P3.9pixel pitch) deliver cinematic clarity while conserving critical spatial resources.

Why SlimLUX?

Space-Smart Design: Install in tight boardrooms or expansive lobbies effortlessly 6-size flexible matrix system：

1,000x500x33mm,500x500x33mm

250x500x33mm,1,000x250x33mm.

500x250x33mm,250x250x33mm

Zero-Bezel Immersion: 1.95mm seamless joints craft borderless visual spectacles

Perfect Flatness：cabinets are made of die-castaluminum ensuring high strength and high fatness.

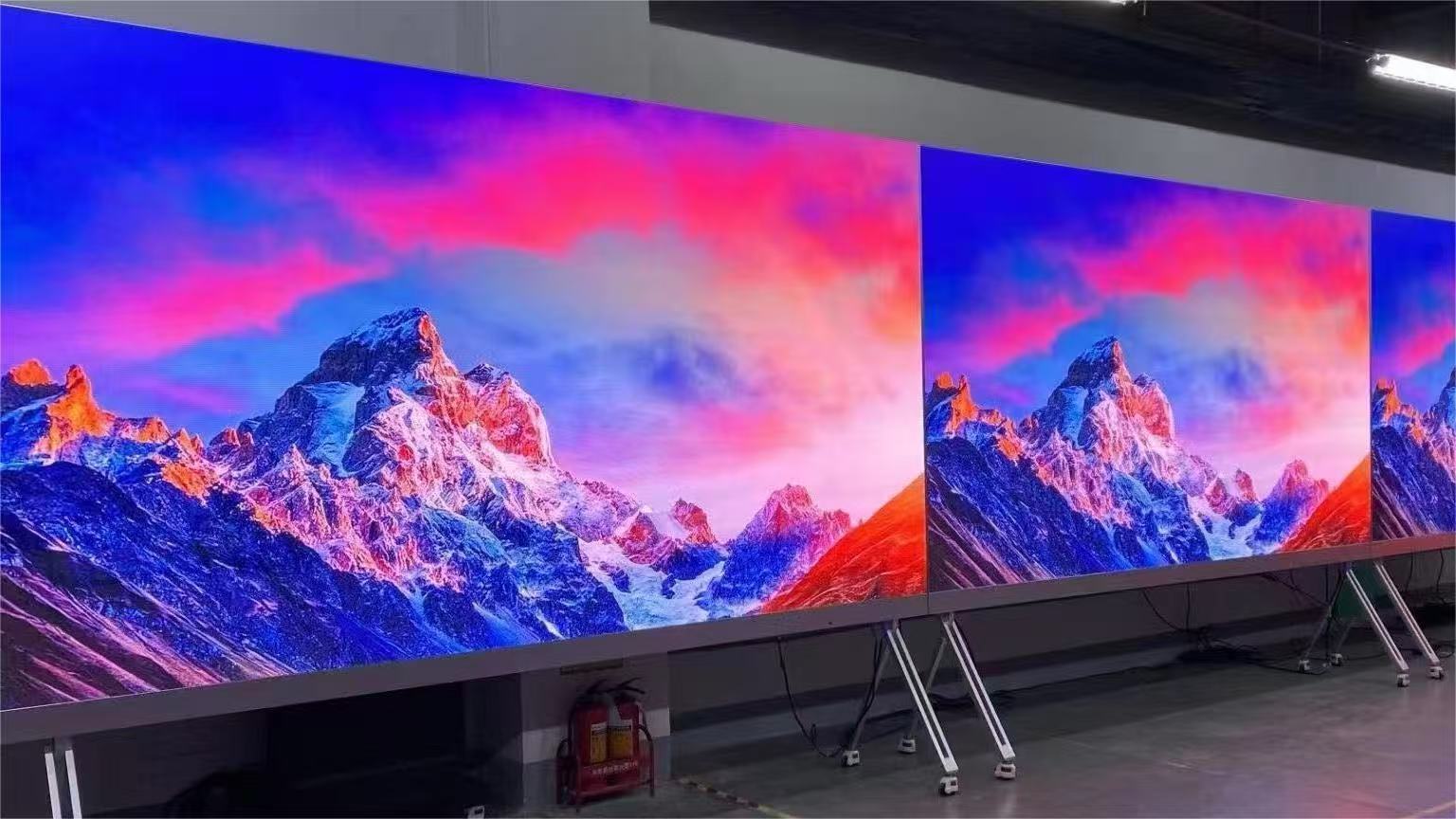

The best choice for Indoor Fixed Installation LED Screen

S-Series Installation Versatility

Supports both wall mounting and hanging installations.

Supports seamless right-angle installation. 3.Supports multi-size stitching.

Multi-scenario Application

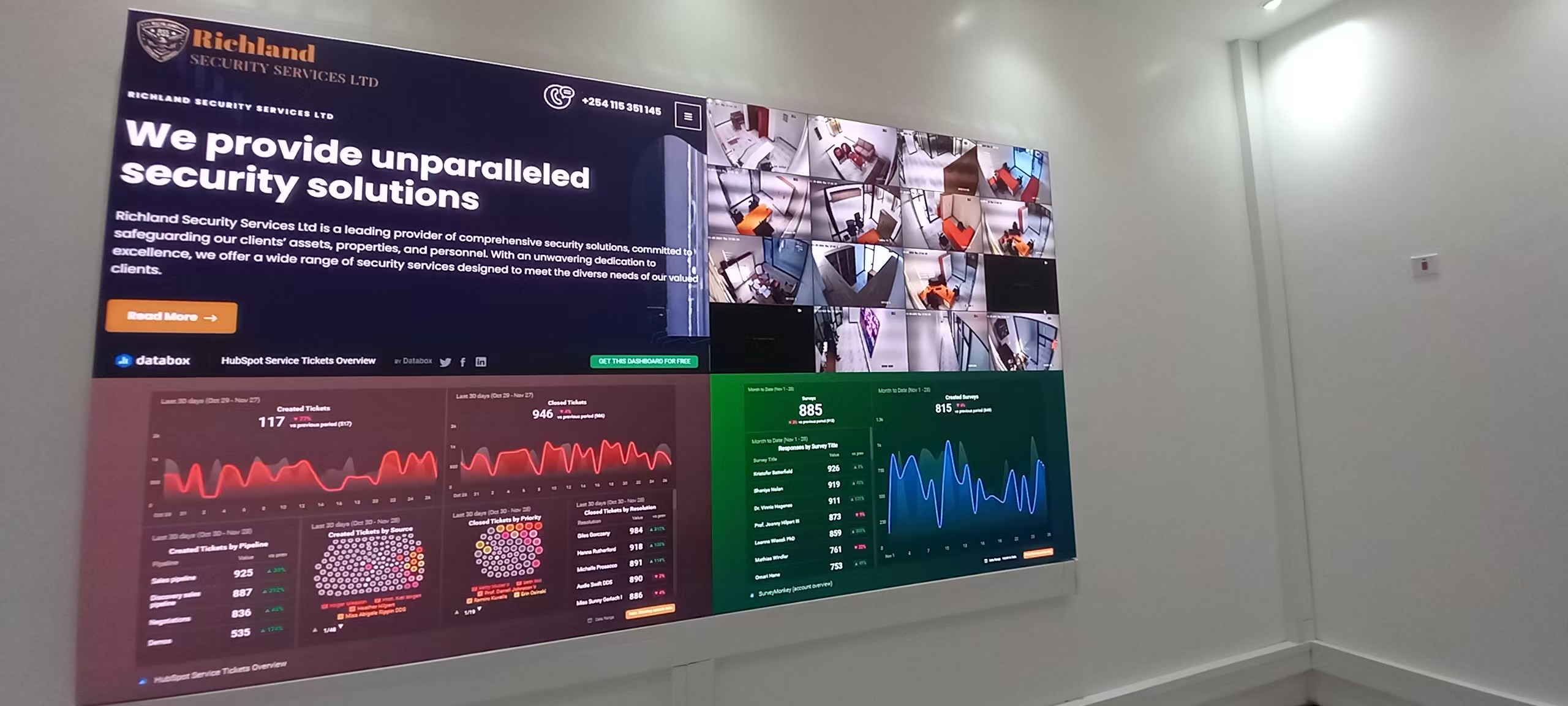

The S-Series Modular LED Display System revolutionizes indoor visual solutions with its reconfigurable architecture, seamless splicing precision, and multi-platform compatibility.Such as Corporate Meetings,Retail Displays,Art Exhibitions,Education and Training,Stage Performances,etc.

Technical Parameters

Product model:	S1.9	S2.5	S2.6	S3.9
Pixel pitch(mm):	1.95	2.5	2.6	3.9
Pixel density(dots/m²):	262144	160000	147456	65536
LED type:	SMD1212	SMD1515	SMD2121	SMD2121
Module size(mm):	250*250	250*250	250*250	250X250
Module weight(kg):	0.36	0.34	0.33	0.32
Module Resolution (PX):	128x128	100x100	96x96	64X64
Driving mode:	Constant current	Constant current	Constant current	Constant current
Horizontal viewing angle (Deg):	160	160	160	160
Vertical viewing angle (Deg):	160	160	160	160
Brightness(cd/SQM):	800-1000	800-1000	800-1000	800-1000
Gray scale (bit):	≥14	≥14	≥14	≥14
Refresh rate (Hz):	3840	3840	3840	3840
Max power consumption (W/m²):	580±3%W/m2	580±3%W/m2	580±3%W/m2	450±3%W/m2
Average power consumption((W/m²):	180W/m2	180W/m2	180W/m2	150W/m2
Cabinet size(mm):	1000 x500/750x500/500 x500/1000x250/750x250/500x250
Cabinet weight(KG/SQM):	20
Cabinet thickness(mm):	33.4
Input voltage (V):	AC100-240V
Working temperature(℃):	-20~+55
Working humidity(RH):	10%to 95%
Storage temperature(℃):	-40~+80
Storage humidity(RH):	10%to 85%
Waterproof level:	IP20
Working environment:	Indoor
Maintenance mode:	Front maintenance
Installation method:	Hoisting,wall mounting,floor mounting and wall mounting
Certification:	CE(EMCA,LVD),FCC,ETL,CB

Related Application

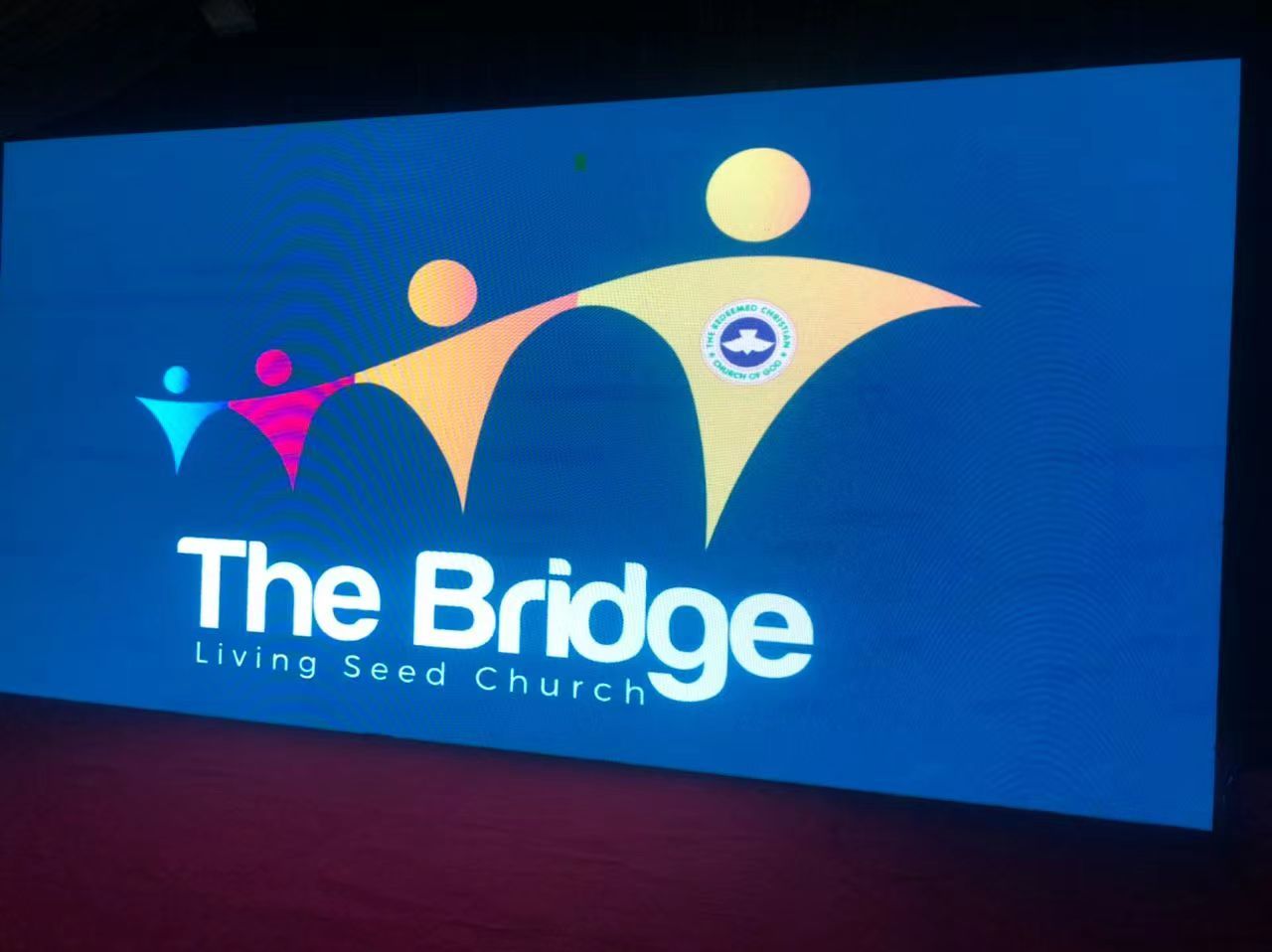

Location: Lagos The Redeemed Christian Church of God
Pixel Pitch :2.9mm
Screen Size :48sqm

Location: Audi Booth Auto Show SH
Pixel Pitch :3.9mm
Screen Size :120sqm
