All in One COB LED Display for Conference

Applications: Conferences: For presenting keynotes, breakout sessions, or panel discussions. Training Seminars: For instructors to display course materials or facilitate interactive learning. Webinars: For live or recorded presentations with high-quality visuals and audio. Live Events: For sports commentary, entertainment, or any event requiring simultaneous content display.
Application: Professional display, premium meeting room, home cinema, control rooms

✓ Flip Chip COB technology ✓ Wider Viewing Angle (±1700) ✓ Wireless Projection ✓ Screen Split ✓ Plug & Play ✓ Multi-Interfaces (HDMI, USB, etc) ✓ High Integration (Screen Share, Scan Save, Built-in Speaker) ✓ Quicker Installation

Category:

Products

All In One Conference LED Display

Contact Now

Product Description

All-In-One Conference Led Display is a comprehensive solution that combines all necessary components into a single, easy-to-use platform for delivering presentations or content. This setup is particularly useful for events like conferences, webinars, or seminars where multiple presenters or speakers need to be displayed simultaneously.

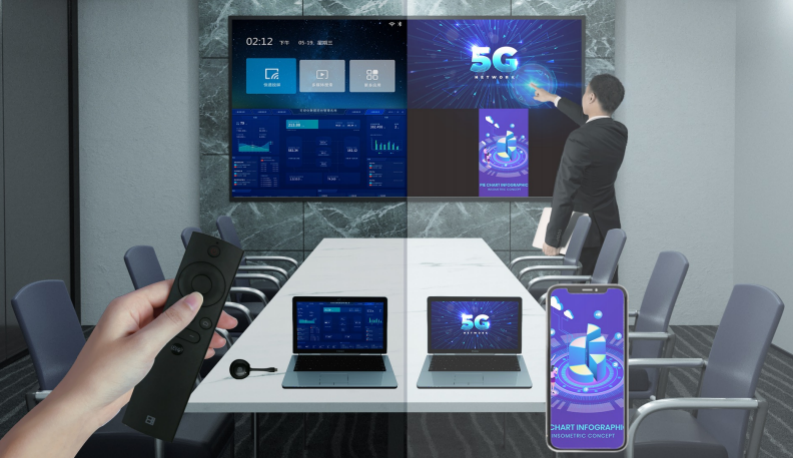

Screen can be split into 4 different windows
Equipped with advanced interactive touch technology, it can easily write, zoom in and zoom out, drag and drop by finger or pen, which effectively improves work efficiency and inspires brainstorming.

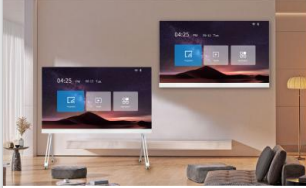

Wall Mounted | Use wall-mounted bracket Floor-standing | Use universal wheel

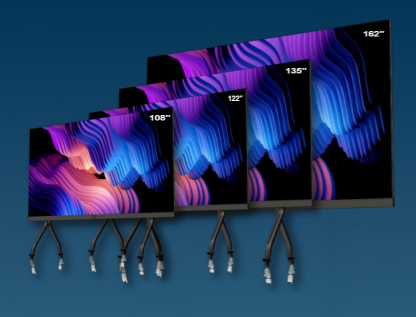

There are 4 sizes to meet various scenarios such as meeting rooms, lecture halls, exhibition halls, seminar halls, auditoriums, etc .

Technical Parameters

MODEL

CW012

CW015

CW018

Display size (inch)

108"

135"

162"

LED Type

COB

Display Resolution

1920 x 1080

Display Dimension (WxHxD , mm )

2400 x 1350 x 39.75

3000 x 1687 .5 x 39.75

3600 x 2025 x 39.75

Overall Weight (kg)

102

155

220

Brightness (cd/sqm)

600

550

Contrast Ratio

10 , 000:1

Greyscale (bit)

Refresh Rate (Hz)

3840

Viewing Angle( H/V )

160。/ 160。

Suggested Audiences

8-20

20-50

50-80

Max. Power Consumption (W/set)

1134

1772

2370

Avg. Power Consumption (W/set)

340

532

710

AC Working Voltage (V)

100-240V-50/60Hz

System

Android&Windows

Touch Technology

Interactive touch (optional)

Extra Control Interface

1 × Gen lock;

1 × LAN; 1 × HDMI in; 1 × HDMI out;

RS23 2 / USB

Storage Humidity

10% ~ 90%

Storage Temperature

-20℃ ~ + 60℃

Working Humidity

10% ~ 90%

Operating Temperature

-10℃ ~ +40 ℃

Lifetime(50% brightness)(hours)

100,000

Related Application

Location: Lagos The Redeemed Christian Church of God
Pixel Pitch :2.9mm
Screen Size :48sqm

Location: Audi Booth Auto Show SH
Pixel Pitch :3.9mm
Screen Size :120sqm

Related Products

Prime Series

PS series is Micro-pitch display utilize Flip-chip-on-board technology and cutting-edge 3D inkjet printing technology to give the screen an unprecedentedly smooth touch, and also significantly improves the screen's light-emitting efficiency by 20%. The display ensures high brightness, high resolution, and long-lasting durability. Whether it's a command-and-control center, high-end commercial display, or visual data center and other professional display scenarios, the product can meet the strict requirements for high-quality display and provide users with high-quality and efficient visual solutions.

S Series

The S Series has the ability to display high-quality content in indoor environments with exceptional clarity and detail. Their flexibility in size and shape allows them to be configured to fit almost any space, at right angles or tilted to create unique and visually stunning installations. Lt provides versatile, high quality and durable solutions for a wide range of indoor video display applications.

All in One COB LED Display for Conference

Horizon Mini 4 in 1 Events & Staging LED Display

Mini 4 in 1 have been approved be the best technology choice for events model below 2.9mm . The biggest pain points for events panel like 2.5mm , 1.5mm the LED lamps are very tiny , very fragile and easy damage , while events assemble and disassemble , also the road transportation will damage the LED lamp easily , because it is tiny chips , maintain give a big challenge . Mini 4 in 1 as 4 lamps in one soldering plate ,which have bigger soldering plate for bigger strength can suffering 14kg outer-force , solved the biggest pain points for fine pitch event models , We developed the color contrast of 4 in 1 , the color performance is vivid ,viewing angle almost 180 degree could support the high profile conference presentation request.
