Indoor Intelligent LED Poster Lite Series

Dimension:600*2025*35mm
Pixel Pitch Indoor: 1.2mm,1.5mm, 1.8mm
Weight :41KG/set

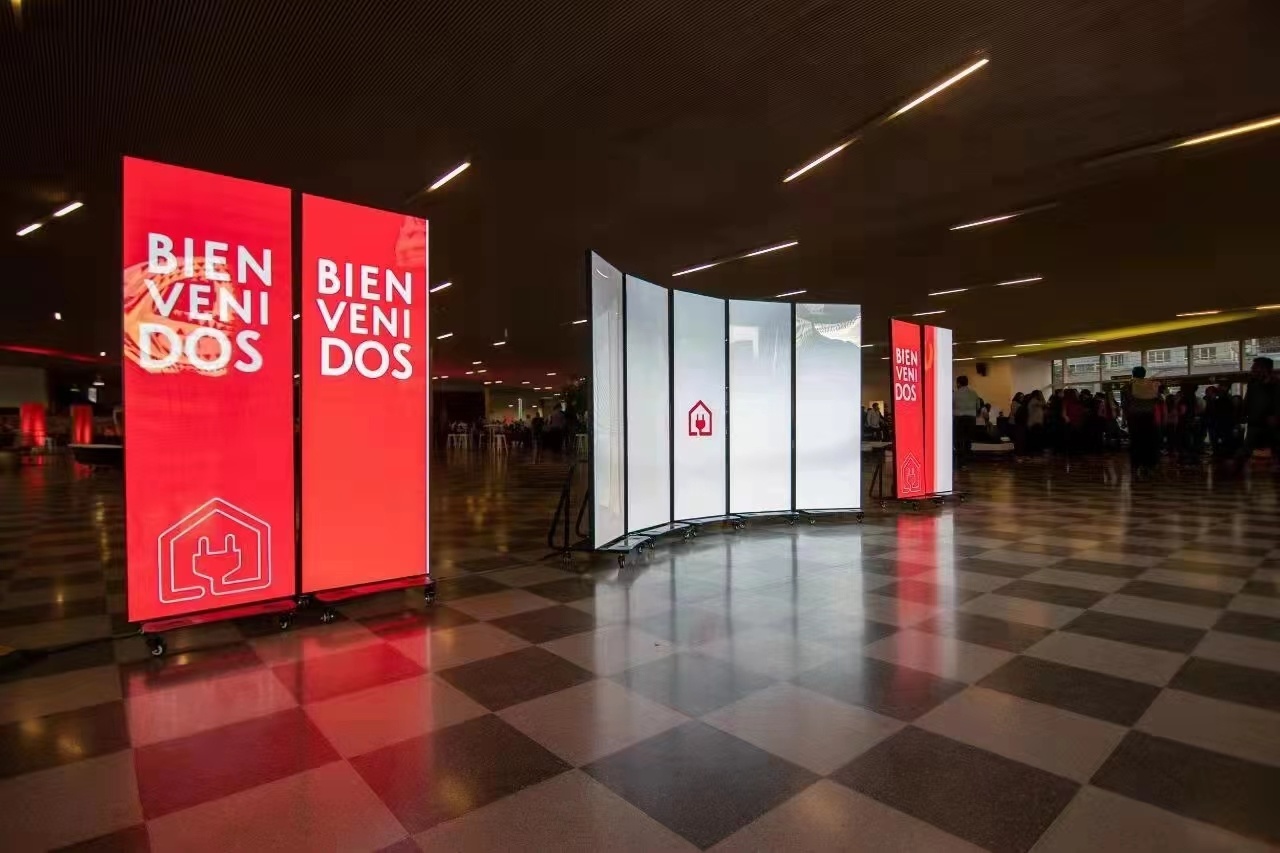

Application: Retail stores, shopping mall, creative events, enterprises, showroom, exhibition

Plug and play design , easily control by phone for timely uploading customized contents
Ultra high definition to deliver smooth and clearer vivid displaying effect
Multiple installation methods can do creative installation ,bracket installation ,base standing ,hanging installation to meet different events request .
Industry class durable power pack to ensure the electrical stability and reliability
Multiple screen splicing , no edge line ,simple to reach 2K

Category:

Events &Staging LED Display

Contact Now

Product Description

Brighten Lite series LED poster is an intelligent portable LED display designed for modern advertising and digital signage. With convenient cloud remote control through iOS/Android/Windows application, Lite Poster allows for easy cluster management and remote monitoring, and support multiple screen splicing without edge lines.

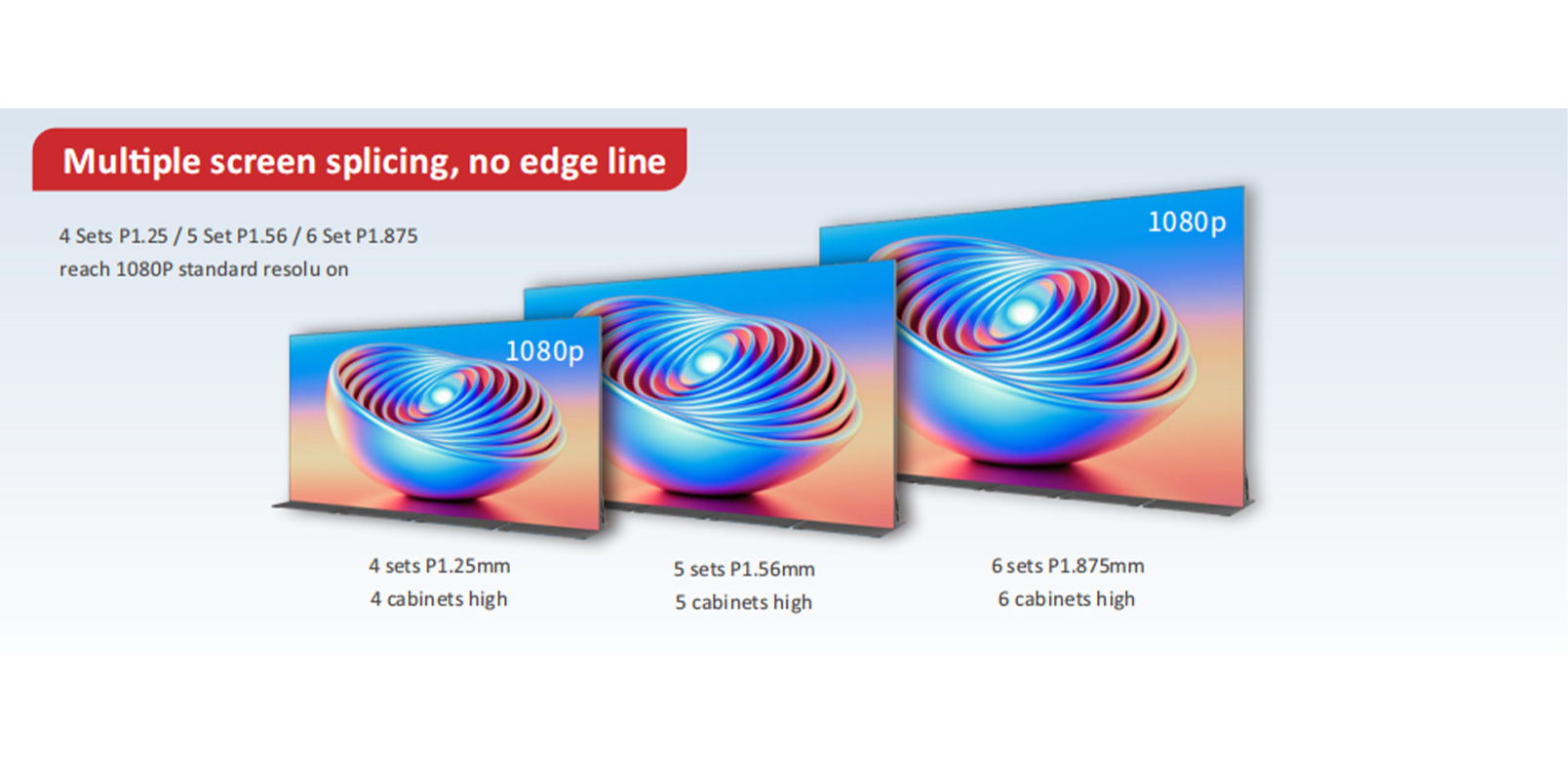

Multi-screen Cascade

Multiple Lite Posters can be seamless cascaded together with high flatness to satisfy various resolution needs such as a 16:9 golden ratio while ensuring an exceptional 2K display.

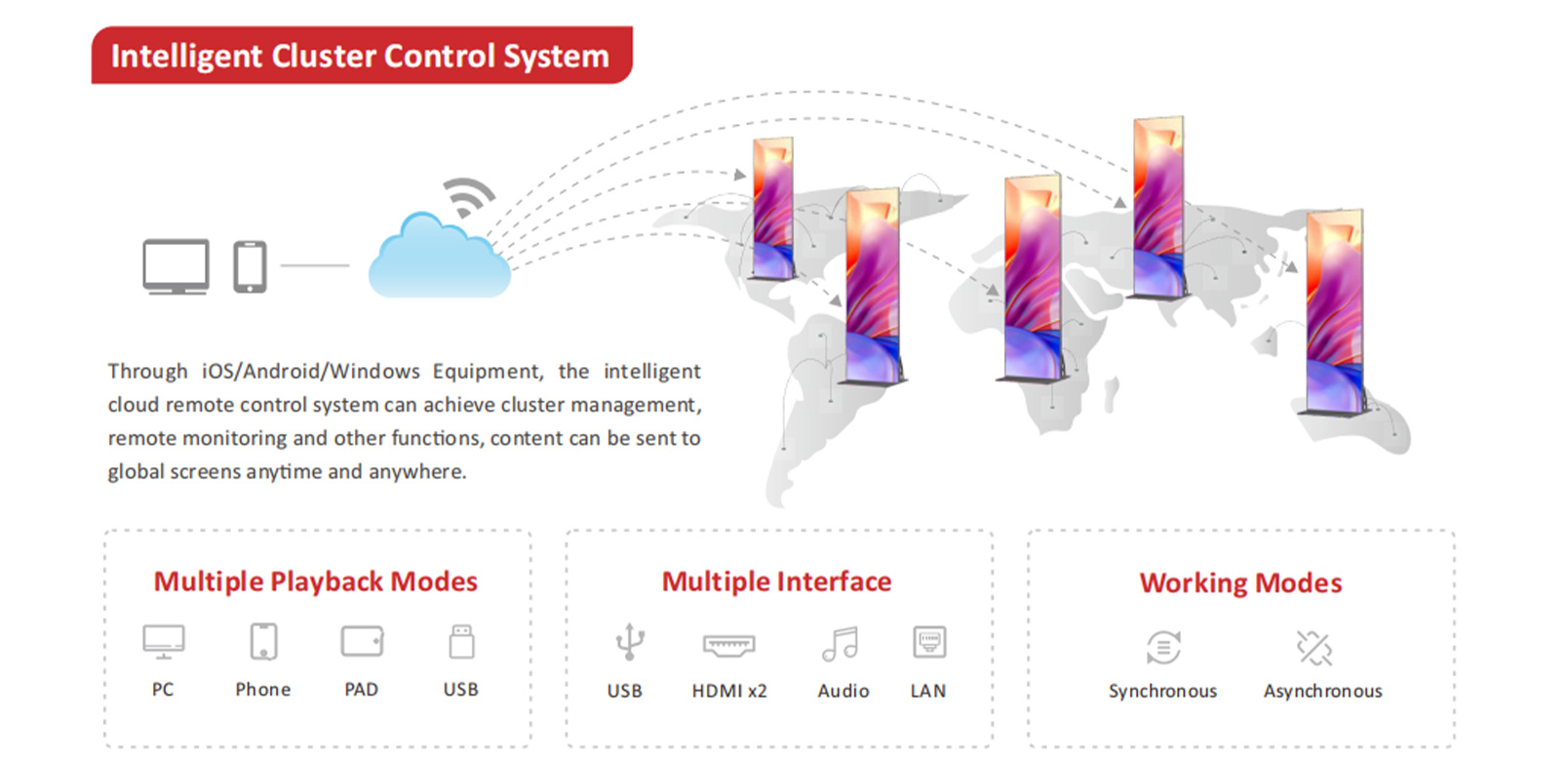

Easy setup, Intelligent Cluster Control

With Lite posters connected to cloud, you can feel at ease remote control LED posters.
Support PC, Phone, PAD, USB different media connection, and support multiple interface such as HDMI, Audio, LAN.

Smart Playback Management

Lite Posters allows both synchronous and asynchronous playback modes
Friendly user interface
Dual WiFi (AP & Sta modes)
Adaptively play according to the screen size
Each page can be set for timeslot or cycle
Intelligent brightness adjustment (automatic and timing )

Multiple Installation & Fast Maintenance

Support Screen cascading, Bracket standing, Base standing, hanging installation to meet different installation request.

Technical Parameters

Series

BDI Indoor Commercial LED Display

Pixel Pitch	1.2mm	1.5mm	1.8mm	2.5mm
LED	SMD	SMD	SMD	SMD
Screen Size(W*H)	600202535mm	600202535mm	600202535mm	600202535mm
Screen Resolution(W*H)	1620*480	1296*384	1080*320	810*240
Refresh Frame Rate	50/60Hz	50/60Hz	50/60Hz	50/60Hz

Net Weight

41KG

Cabinet Material	Aluminum Die Casting	Aluminum Die Casting	Aluminum Die Casting	Aluminum Die Casting
Brightness	600-800nits	600-800nits	600-800nits	600-800nits
Viewing Angle	160°/160°	160°/160°	160°/160°	160°/160°
Input Voltage	110-220VAC	110-220VAC	110-220VAC	110-220VAC

Control Interface	HDMI1, USB2 , AUX*1
Operating Equipment	Phone, Ipad, PC

* Above parameters are typical values, which are adjustable according to different project reqiurements.

Related Application

Location: Latin America for events use
Pixel Pitch :2mm
Screen Size :61.44sqm

Location: Ghana Events
Pixel Pitch :2mm
Screen Size :24.58sqm

Related Products

Prime Series

PS series is Micro-pitch display utilize Flip-chip-on-board technology and cutting-edge 3D inkjet printing technology to give the screen an unprecedentedly smooth touch, and also significantly improves the screen's light-emitting efficiency by 20%. The display ensures high brightness, high resolution, and long-lasting durability. Whether it's a command-and-control center, high-end commercial display, or visual data center and other professional display scenarios, the product can meet the strict requirements for high-quality display and provide users with high-quality and efficient visual solutions.

S Series

The S Series has the ability to display high-quality content in indoor environments with exceptional clarity and detail. Their flexibility in size and shape allows them to be configured to fit almost any space, at right angles or tilted to create unique and visually stunning installations. Lt provides versatile, high quality and durable solutions for a wide range of indoor video display applications.

All in One COB LED Display for Conference

All-In-One Conference Led Display is a comprehensive solution that combines all necessary components into a single, easy-to-use platform for delivering presentations or content. This setup is particularly useful for events like conferences, webinars, or seminars where multiple presenters or speakers need to be displayed simultaneously.

Horizon Mini 4 in 1 Events & Staging LED Display

Mini 4 in 1 have been approved be the best technology choice for events model below 2.9mm . The biggest pain points for events panel like 2.5mm , 1.5mm the LED lamps are very tiny , very fragile and easy damage , while events assemble and disassemble , also the road transportation will damage the LED lamp easily , because it is tiny chips , maintain give a big challenge . Mini 4 in 1 as 4 lamps in one soldering plate ,which have bigger soldering plate for bigger strength can suffering 14kg outer-force , solved the biggest pain points for fine pitch event models , We developed the color contrast of 4 in 1 , the color performance is vivid ,viewing angle almost 180 degree could support the high profile conference presentation request.
