Dura COB

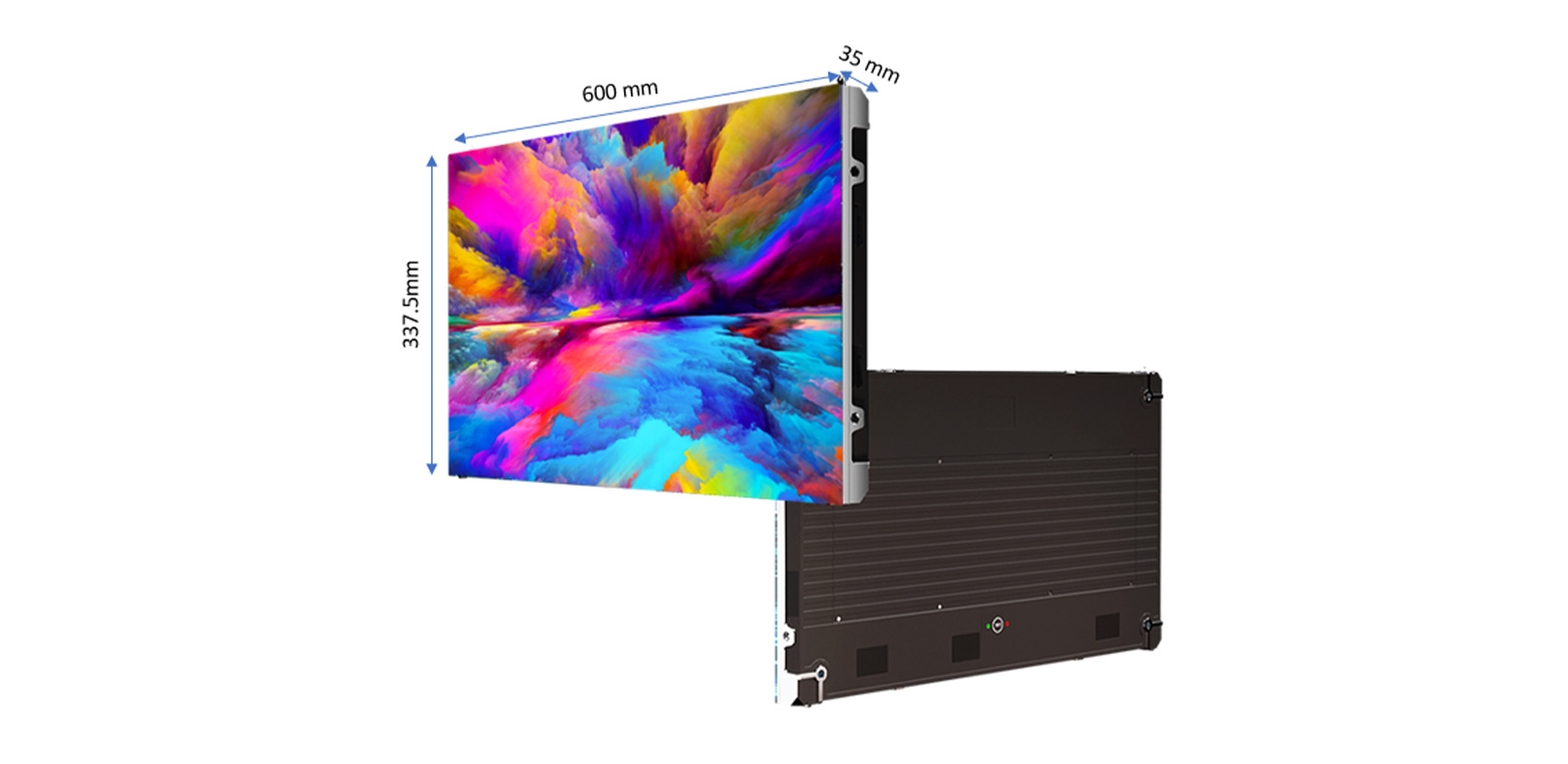

Dimension: 600*337.5mm
Pixel Pitch Indoor: 0.7mm, 0.9mm, 1.2mm, 1.5mm
Application: Professional display, premium meeting room, home cinema, control rooms

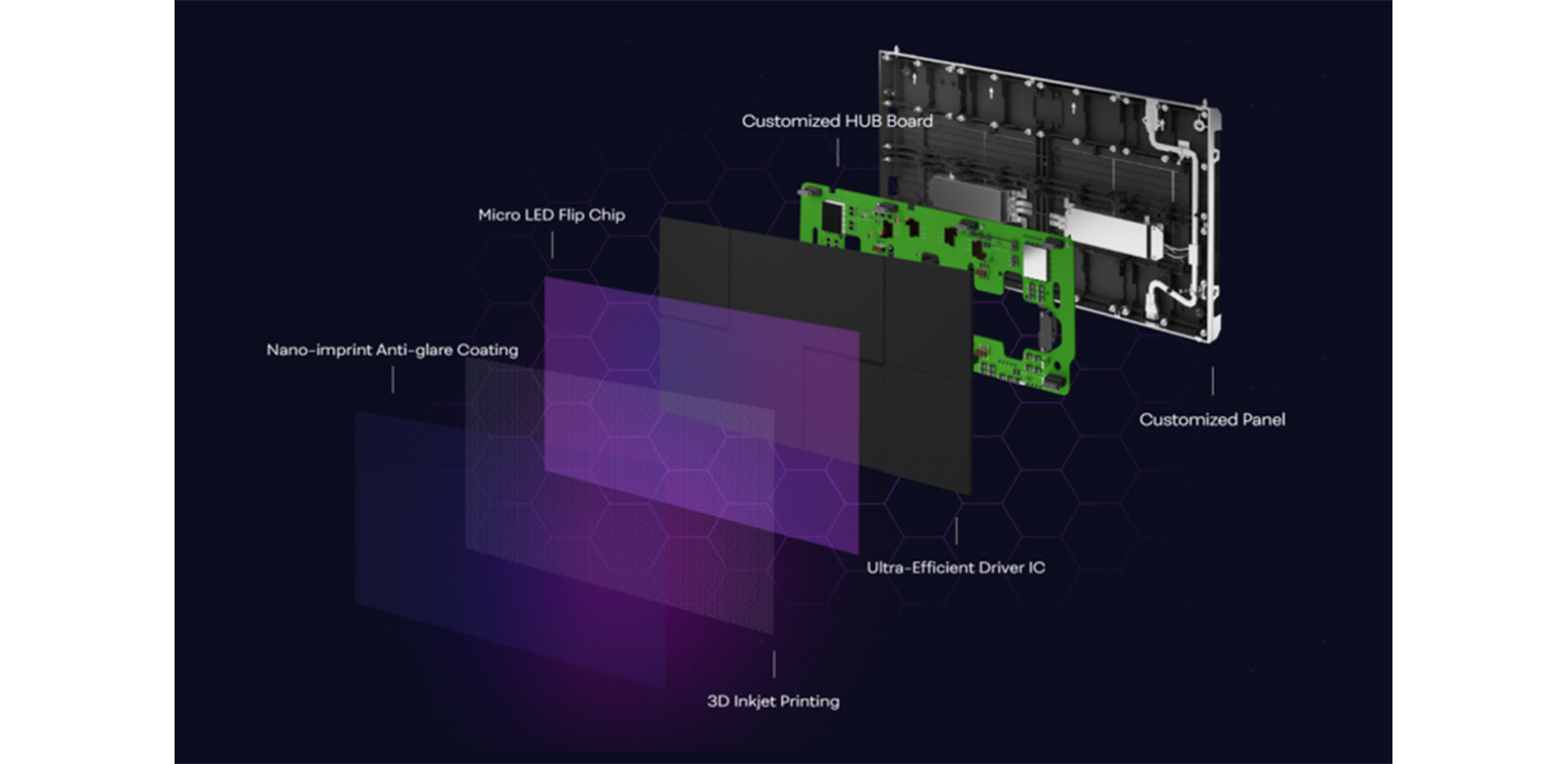

0.9, 1.2, 1.5mm pixel pitch, 16:9 golden ratio cabinet, , Integrated Micro LED COB flip chip technology
Equipped with 3D inkjet printing technology
Wide viewing angle \Perfect structure\HDR
20% increase in light emission efficiency, energy saving cold screen Ultra-precise production environment + process optimization

Category:

Products

Commerical LED Display

Contact Now

Product Description

Dura COB is Micro-pitch display utilize Flip-chip-on-board technology and cutting-edge 3D inkjet printing technology to give the screen an unprecedentedly smooth touch, and also significantly improves the screen's light-emitting efficiency by 20%. The display ensures high brightness, high resolution, and long-lasting durability. Whether it's a command-and-control center LED Screen, high-end commercial display, or visual data center LED Screen ,Conference LED Screen and other professional display scenarios, the product can meet the strict requirements for high-quality display and provide users with high-quality and efficient visual solutions.

Ultra-thin & Ultra-light

Ultra thin with 31.3mm
Panel weight only 4.6kg/pc
Cabinet is lighter and slimmer, it reduces the transportation cost and installation labor cost

Modular cabinet structure design

Hard connection for module and power supply.

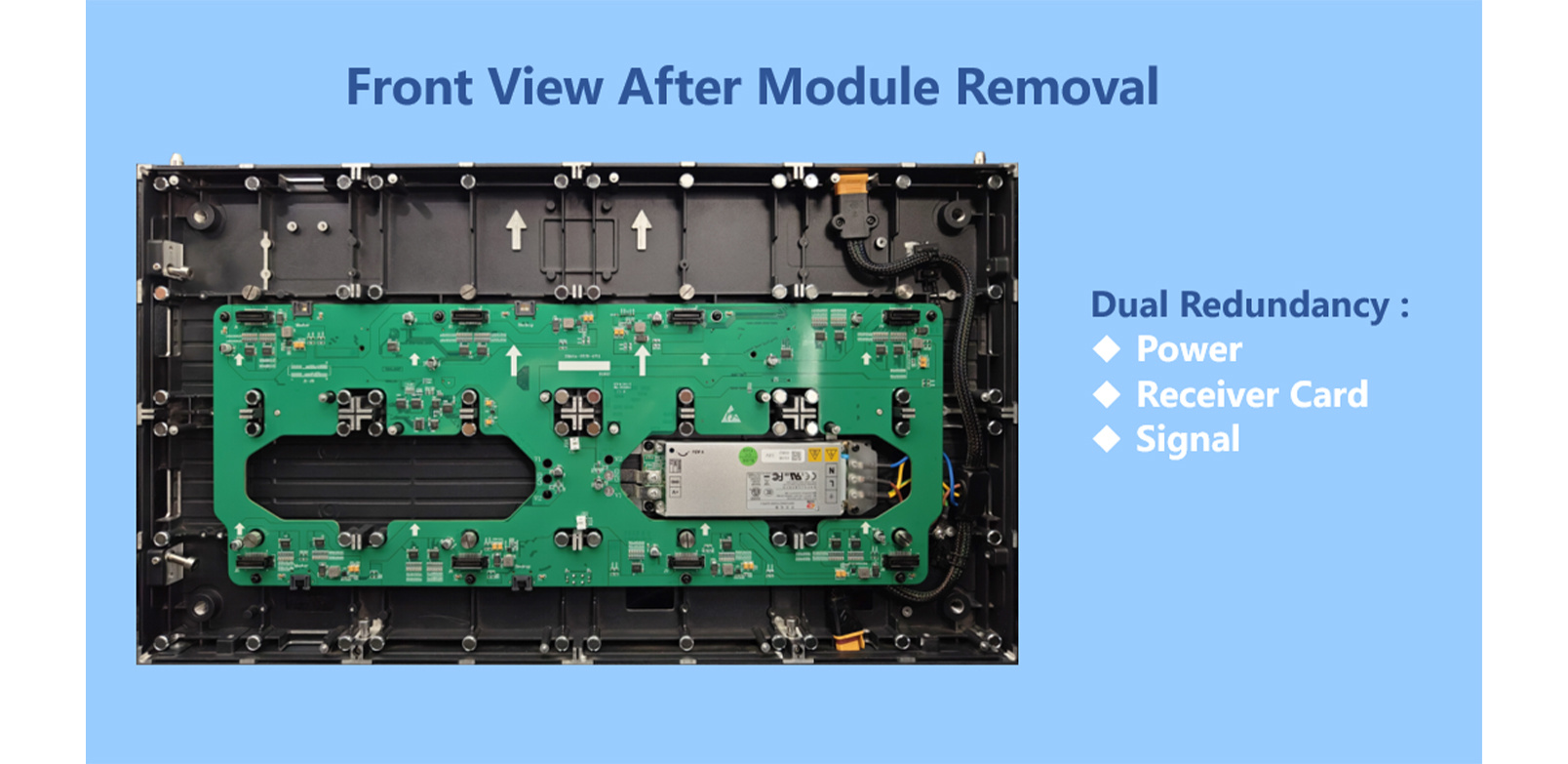

Totally front installation and maintenance. Signal and power dual backup.

Details of Cabinet

Hardware connection between modules and cabinet is more stable
Aluminum cabinet has better heat dissipation performance Support dual power, signal back up

Wide Viewing Angle

Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle
Comfortable visual experience

Technical Parameters

Model Name	HZ-1.95Mini	HZ-2.6	HZ-2.6Mini	HZ-2.9	HZ-3.9
Pixel Pitch(mm)	1.95	2.6	2.6	2.9	3.9
Pixel Density(dot/m²)	262,144	147,456	147,456	112,896	65,536
LED Sealing Type	Mni 4in1	SMD2121	Mini 4in1	SMD2121	SMD2121
Module Resolution(PX*PX)	128*128	96*96	96*96	84*84	64*64
Module Size(mm*mm)	250*250	250*250	250*250	250*250	250*250
Module Weight(kg)	0.65	0.65	0.65	0.65	0.65
Module Thickness	22mm	22mm	22mm	22mm	22mm
Contrast Ratio	10,000:1/12,000:1	10,000:1	10,000:1/12,000:1	10,000:1	10,000:1
Drive Mode	Constant Current	Constant Current	Constant Current	Constant Current	Constant Current
Horizontal Viewing Angle(Deg)	160	160	160	160	160
Vertical Viewing Angle(Deg)	140	140	140	140	140
Brightness(cd/m²)	1,300/1,500	800-1,000	1,300/1,500	800-1,000	800-1,000
Grey Scale(bit)	16	14	14/16	14	14
Refresh Rate(Hz)	3,840/7,680	3,840	3,840/7,680	3,840	3,840
Max Power Dissipation(W/SQM)	<500/<560	<440	<500/<570	<440	<450
Average Power Consumption (W/SQM)	<150/<168	<135	<150/<170	<135	<135
Cabinet Size(mm*mm)			500*500
Cabinet Weight(Kg)			7.8
Cabinet Thickness(mm)			80
Input Voltage(V)			AC110-220V
Working Temperature(℃)			-20~+50℃
Working humidity(RH)			10%~90%
Waterproof Level			IP20
Working Environment			Indoor
Maintenance type			Front/Rear

Related Application

Location: Lagos The Redeemed Christian Church of God
Pixel Pitch :2.9mm
Screen Size :48sqm

Location: Audi Booth Auto Show SH
Pixel Pitch :3.9mm
Screen Size :120sqm

Related Products

Prime Series

PS series is Micro-pitch display utilize Flip-chip-on-board technology and cutting-edge 3D inkjet printing technology to give the screen an unprecedentedly smooth touch, and also significantly improves the screen's light-emitting efficiency by 20%. The display ensures high brightness, high resolution, and long-lasting durability. Whether it's a command-and-control center, high-end commercial display, or visual data center and other professional display scenarios, the product can meet the strict requirements for high-quality display and provide users with high-quality and efficient visual solutions.

S Series

The S Series has the ability to display high-quality content in indoor environments with exceptional clarity and detail. Their flexibility in size and shape allows them to be configured to fit almost any space, at right angles or tilted to create unique and visually stunning installations. Lt provides versatile, high quality and durable solutions for a wide range of indoor video display applications.

All in One COB LED Display for Conference

All-In-One Conference Led Display is a comprehensive solution that combines all necessary components into a single, easy-to-use platform for delivering presentations or content. This setup is particularly useful for events like conferences, webinars, or seminars where multiple presenters or speakers need to be displayed simultaneously.

Horizon Mini 4 in 1 Events & Staging LED Display

Mini 4 in 1 have been approved be the best technology choice for events model below 2.9mm . The biggest pain points for events panel like 2.5mm , 1.5mm the LED lamps are very tiny , very fragile and easy damage , while events assemble and disassemble , also the road transportation will damage the LED lamp easily , because it is tiny chips , maintain give a big challenge . Mini 4 in 1 as 4 lamps in one soldering plate ,which have bigger soldering plate for bigger strength can suffering 14kg outer-force , solved the biggest pain points for fine pitch event models , We developed the color contrast of 4 in 1 , the color performance is vivid ,viewing angle almost 180 degree could support the high profile conference presentation request.
