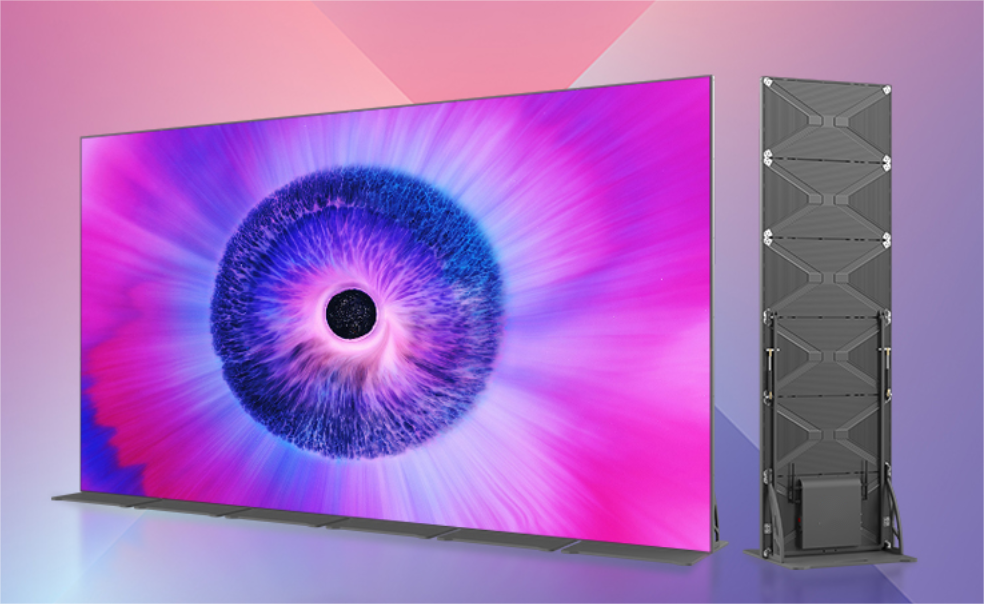

Chip on Board LED Poster

Dimension:600*2025*35mm
Pixel Pitch Indoor: 1.2mm,1.5mm, 1.8mm
Weight :41KG/set

Aluminum die casting and super slim design , with exquisite workmanship
Plug and play design , easily control by phone for timely uploading customized contents
Ultra high definition to deliver smooth and clearer vivid displaying effect
Multiple installation methods can do creative installation ,bracket installation ,base standing ,hanging installation to meet different events request .
Industry class durable power pack to ensure the electrical stability and reliability
Multiple screen splicing , no edge line ,simple to reach 2K

Category:

Products

Commerical LED Display

Contact Now

Product Description

Chip On Board LED Poster has become the new favorite of modern advertising display and commercial displays with its excellent display effect and ultimate design. The application of COB technology enables each LED chip to be directly installed on the circuit board, ensuring the high brightness, high definition, and uniform color performance of the display. Compared with traditional LED display screens, COB LED Poster has more delicate visual effects, and brighter colors, and can provide a more realistic picture presentation.

It adopts an ultra-thin design, is lightweight, and easy to install, which is particularly suitable for use in commercial spaces, exhibitions, performances, shopping malls, and other environments. Its modular design can be flexibly spliced to meet the needs of different sizes and shapes, greatly expanding the possibility of use scenarios. At the same time, the screen has waterproof and dustproof characteristics, can adapt to various complex working environments, and provides stable performance.

The product also supports high-definition picture playback, can display 4K, 8K, or even higher resolution content, and perfectly presents details and colors. Whether it is static advertising, dynamic video, or interactive display, the COB LED Poster of Beteng can provide a smooth and seamless visual experience, attract the audience's attention, and enhance the brand image and commercial value.

As a high-performance, easy-to-operate display solution, Chip On Board LED Poster not only has excellent display effects but also has the characteristics of long service life and low energy consumption, bringing higher cost-effectiveness and stronger market competitiveness to enterprises.

Brighten new generation chip on board LED Posters with advanced seamless splcing ,multi-functional use , an ideal products for events , retail , corporate .

Product Features

Plug &Play , Seamless Splicing , Better Protection , Front Access ,HD Image Quality , Flexible Bracket

Different Installation way

Multiple screen splicing ,no edge line.

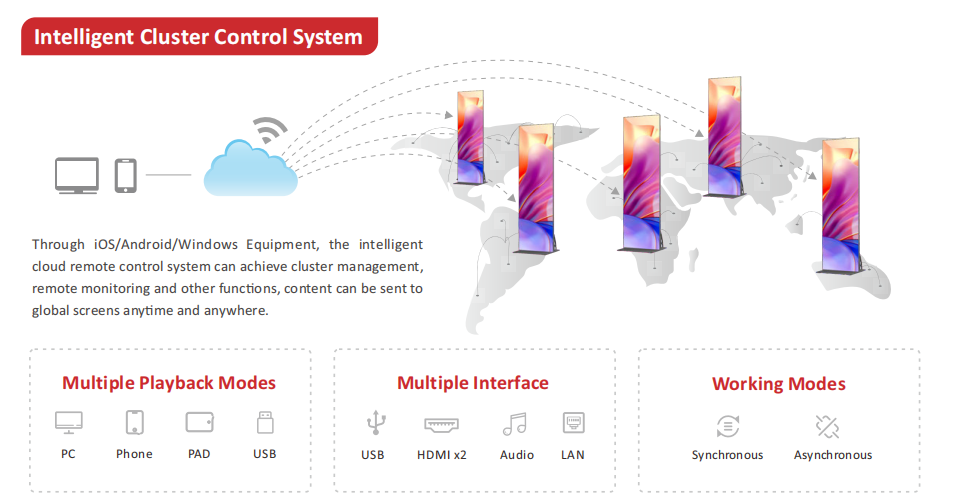

Intelligent Cluster Control System

Technical Parameters

Pixel Pitch (mm)	P1.25	P1.56	P1.87
Pixel Density	640 ,000 px/m2	409 ,600 px/m2	284,444 px/m2
LED Chip	Chip on Board
Module Size (WH)	150* 168.75mm
Module Resolution	120* 135 dots	96* 108 dots	80*90 dots
Surface Treatment	Matt COB
Surface Hardness	4H
Panel Size (WHD)	600mm675mm39.5mm/600mm337.5mm39.5mm
Panel Weight	7.9kg (600675mm) / 4kg (600337.5mm)
Panel Resolution	480540/ 480270	384432/ 384216	320360/ 320 180
Material	Die-casting Aluminium
Circuit Design	Options: Common Cathode Circuit /Common Anode Circuit
Flash Correction Storage	Applicable
Brightness	Standard 600nits /1000nits optional
Refresh Rate	3840Hz
Contrast Ratio	10000:1 (Condition without lighting)
Color Temperature	9300K (Standard)
Viewing Angle	H160° ,V160°
Input Voltage	AC 100~240V 50/60Hz
Max. Power Consumption (White Balance 600nits)	140w/panel(600675mm) 70w/panel(600337.5mm)		130w/panel(600675mm) 65w/panel(600337.5mm)

Related Application

New Generation LED Posters Fine Pitch 1.2mm

Location: Latin America for events use
Pixel Pitch :2mm
Screen Size :61.44sqm

Related Products

Prime Series

PS series is Micro-pitch display utilize Flip-chip-on-board technology and cutting-edge 3D inkjet printing technology to give the screen an unprecedentedly smooth touch, and also significantly improves the screen's light-emitting efficiency by 20%. The display ensures high brightness, high resolution, and long-lasting durability. Whether it's a command-and-control center, high-end commercial display, or visual data center and other professional display scenarios, the product can meet the strict requirements for high-quality display and provide users with high-quality and efficient visual solutions.

S Series

The S Series has the ability to display high-quality content in indoor environments with exceptional clarity and detail. Their flexibility in size and shape allows them to be configured to fit almost any space, at right angles or tilted to create unique and visually stunning installations. Lt provides versatile, high quality and durable solutions for a wide range of indoor video display applications.

All in One COB LED Display for Conference

All-In-One Conference Led Display is a comprehensive solution that combines all necessary components into a single, easy-to-use platform for delivering presentations or content. This setup is particularly useful for events like conferences, webinars, or seminars where multiple presenters or speakers need to be displayed simultaneously.

Horizon Mini 4 in 1 Events & Staging LED Display

Mini 4 in 1 have been approved be the best technology choice for events model below 2.9mm . The biggest pain points for events panel like 2.5mm , 1.5mm the LED lamps are very tiny , very fragile and easy damage , while events assemble and disassemble , also the road transportation will damage the LED lamp easily , because it is tiny chips , maintain give a big challenge . Mini 4 in 1 as 4 lamps in one soldering plate ,which have bigger soldering plate for bigger strength can suffering 14kg outer-force , solved the biggest pain points for fine pitch event models , We developed the color contrast of 4 in 1 , the color performance is vivid ,viewing angle almost 180 degree could support the high profile conference presentation request.
