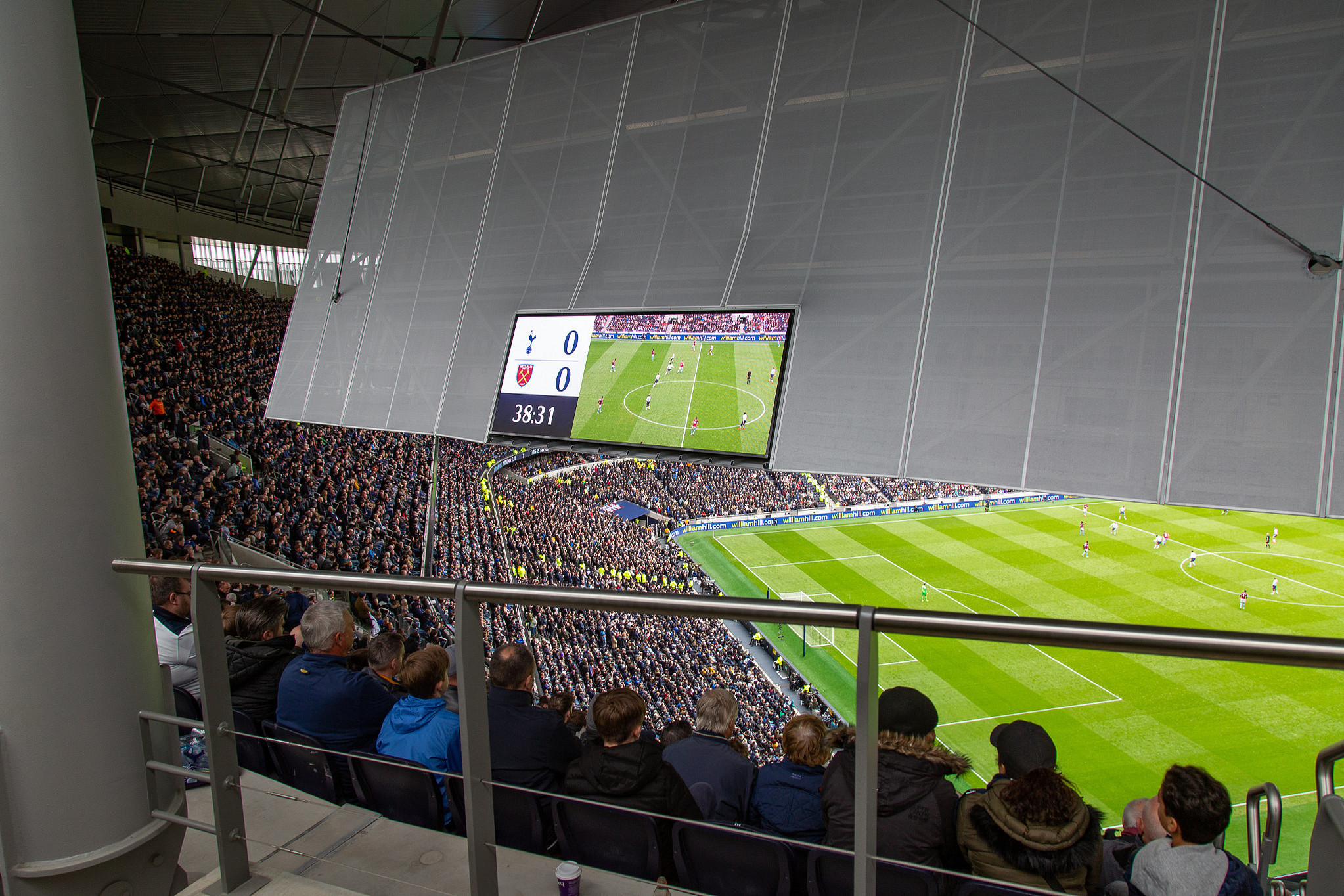

Stadium LED Scoreboard

Dimension:1600*900mm
Pixel Pitch Outdoor: 6.67mm, 8mm, 10mm
Power Consumption:Max.600W/sqm , Avg. 200W/sqm
Weight :41KG/sqm

•Exclusive viewing experience with high refresh rate to achieve real-time broadcasting with no delay.
•Easy installation and flexible maintenance, designed and made easy for maintenance.
•High reliability and ultra-low failure rate that ensure the display to function with no fault
•IP66 rated high protection level, prefect for outdoor application, compliant to CE, UEFA

Category:

Products

Sports LED Display

Contact Now

Product Description

BDS perimeter banner with multi-functional use , can be used for stadium LED Scoreboard , also for stadium premieter banner . BDS banner with high fresh rate, unique lifting design, flexible maintenance, high efficient heat dissipation and more amazing features. The banner LED display enriches the way of sports experience, improves the quality of sports.

High Fresh Rate

Driver chip with PWM function.
Refresh rate up to 3840Hz.
Smooth image transmission, true-color & stable live program presentation.

High Efficient Heat Dissipation

Fanless, aluminum structure, and better heat-dissipating

Industrial-Level Power and Signal Connector

High reliability, satisfying over hundred times of hot-swapping. Suitable for rental and fixing application scenarios with fast and easy installation design Double application , can use for events big screen and perimeter banner

Technical Parameters

Series

BDS

Pixel Pitch	6.6mm	8mm	10mm
LED	SMD	SMD	SMD
Cabinet Resolution(W*H)	144*144	120*120	96*96
Cabinet Size(W*H)	1600900101mm	1600900101mm	1600900101mm
Refresh Frame Rate	50/60Hz	50/60Hz	50/60Hz
IP Rating	IP66	IP66	IP66
Cabinet Material	Aluminum	Aluminum	Aluminum
Brightness	6000nits	6000nits	6000nits
Viewing Angle	160°/60°	160°/60°	160°/60°
Input Voltage	110-220VAC	110-220VAC	110-220VAC

* Above parameters are typical values, which are adjustable according to different project reqiurements.

Related Application

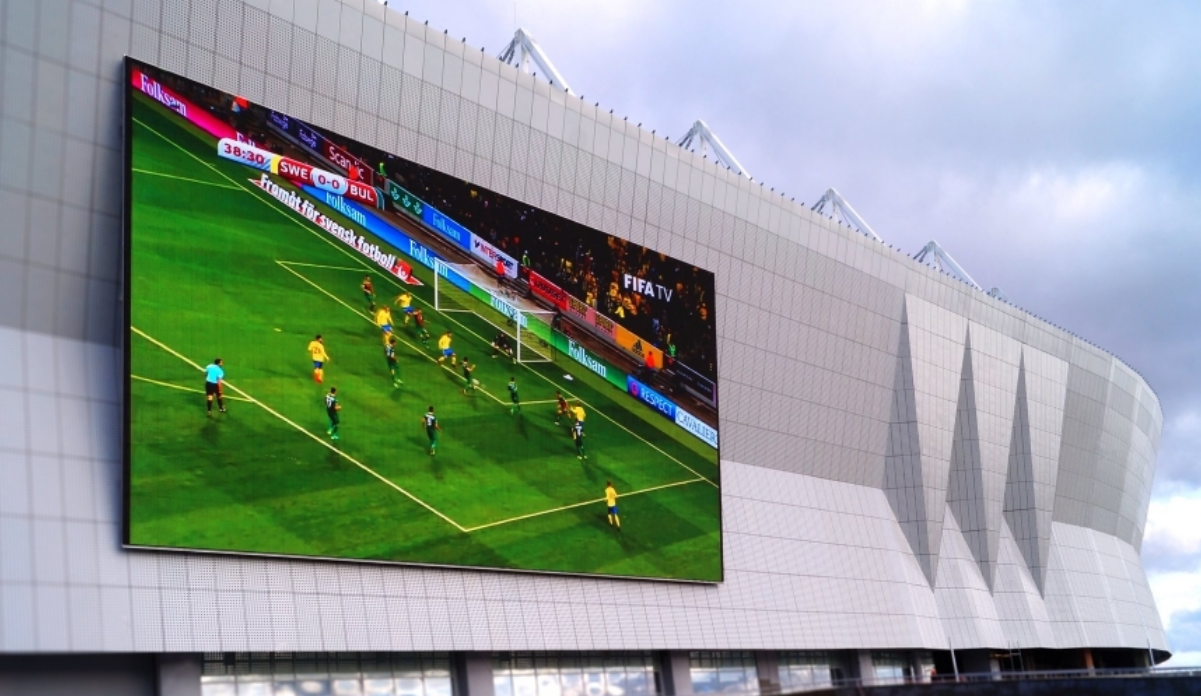

World Cup Scoreboard

Viking Stadion in Stavanger, Norway . Vivid LED screen Scoreboard and Perimeter banner outstanding your events .
