Indoor Control Room LED Display

Dimension:600*337.5*29mm
Pixel Pitch Indoor: 1.2mm,1.5mm, 1.8mm, 2.5mm
Power Consumption:Max.400W/sqm , Avg. 160W/sqm
Weight :22KG/sqm

Aluminum die casting and Light weighted design that reduces the overall weight of the structural splicing, easier to handle
Ultra high definition to deliver smooth and clearer vivid displaying effect
Multiple installation methods & easy installations, made for easy maintenance
Industry class durable power pack to ensure the electrical stability and reliability
Support signal and power dual back up
Simple to reach 2K/4K/8K Ultra high definition LED Display
Compliant to CCC/CE/FCC/UL/EMC/RoHs/Blue light proof/energy conservation

Category:

Products

All In One Conference LED Display

Contact Now

Product Description

Clear Image Quality
With customized SMD LEDs produce richer colors and crisp details for exceptional image quality at close distances, ideal for real-life imagery, small text and intricate detail.

Product Features

Full Frontal Accessible Serviceability Magnetic front serviceability. Modules, control boards and power supply can be removed and maintained from the front of the cabinet. Installation and maintenance are not restricted by space.

Various Installation Methods

Wall Mounted Installation & Stacking Installation &Hanging Installation Positioning pin and lock design, flexible combination, seamless splicing between modules. No Wiring Connection Design Internal connections of cables keep the installation site neat and tidy.

Super Slim Design

Thickness at 29mm, aluminum die casting panel , for wall is flat , panels can be directly mounted on the wall , the finish thickness at 29mm , as slim as a coin .

Technical Parameters

Series

BDI Indoor Commercial LED Display

Pixel Pitch	1.2mm	1.5mm	1.8mm	2.5mm
LED	SMD	SMD	SMD	SMD
Cabinet Size(W*H)	600337.529mm	600337.529mm	600337.529mm	600337.529mm
Cabinet Resolution(W*H)	480*270	384*216	320*180	240*135
Refresh Frame Rate	50/60Hz	50/60Hz	50/60Hz	50/60Hz
IP Rating	IP40	IP40	IP40	IP40
Cabinet Material	Aluminum Die Casting	Aluminum Die Casting	Aluminum Die Casting	Aluminum Die Casting
Brightness	600-800nits	600-800nits	600-800nits	600-800nits
Viewing Angle	160°/140°	160°/140°	160°/140°	160°/140°
Input Voltage	110-220VAC	110-220VAC	110-220VAC	110-220VAC

* Above parameters are typical values, which are adjustable according to different project reqiurements.

Related Application

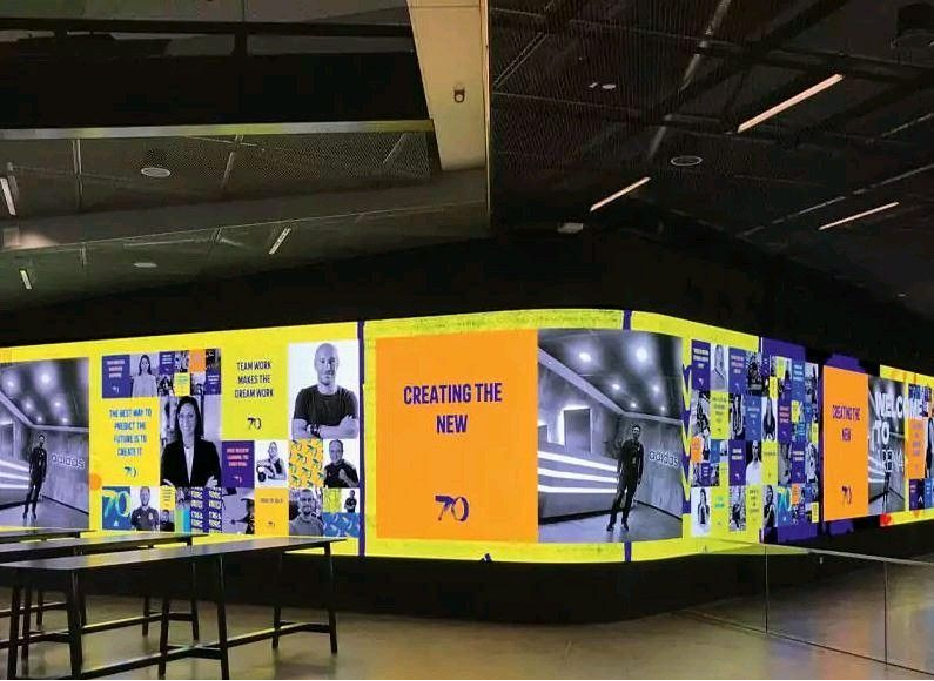

Location: Unitrust
Pixel Pitch :1.9mm &1.2mm
Screen Size :55.73sqm

Location: Adidas in Germany
Pixel Pitch :1.9mm
Screen Size :110sqm

Related Products

Prime Series

PS series is Micro-pitch display utilize Flip-chip-on-board technology and cutting-edge 3D inkjet printing technology to give the screen an unprecedentedly smooth touch, and also significantly improves the screen's light-emitting efficiency by 20%. The display ensures high brightness, high resolution, and long-lasting durability. Whether it's a command-and-control center, high-end commercial display, or visual data center and other professional display scenarios, the product can meet the strict requirements for high-quality display and provide users with high-quality and efficient visual solutions.

S Series

The S Series has the ability to display high-quality content in indoor environments with exceptional clarity and detail. Their flexibility in size and shape allows them to be configured to fit almost any space, at right angles or tilted to create unique and visually stunning installations. Lt provides versatile, high quality and durable solutions for a wide range of indoor video display applications.

All in One COB LED Display for Conference

All-In-One Conference Led Display is a comprehensive solution that combines all necessary components into a single, easy-to-use platform for delivering presentations or content. This setup is particularly useful for events like conferences, webinars, or seminars where multiple presenters or speakers need to be displayed simultaneously.

Horizon Mini 4 in 1 Events & Staging LED Display

Mini 4 in 1 have been approved be the best technology choice for events model below 2.9mm . The biggest pain points for events panel like 2.5mm , 1.5mm the LED lamps are very tiny , very fragile and easy damage , while events assemble and disassemble , also the road transportation will damage the LED lamp easily , because it is tiny chips , maintain give a big challenge . Mini 4 in 1 as 4 lamps in one soldering plate ,which have bigger soldering plate for bigger strength can suffering 14kg outer-force , solved the biggest pain points for fine pitch event models , We developed the color contrast of 4 in 1 , the color performance is vivid ,viewing angle almost 180 degree could support the high profile conference presentation request.
