LED Display Solution powered by Lithium Battery and Generator

A customized solution base on Nigeria power situation , battery and generator hybrid way offers a sustainable and cost effective solution to power the outdoor energy saving LED Screen.

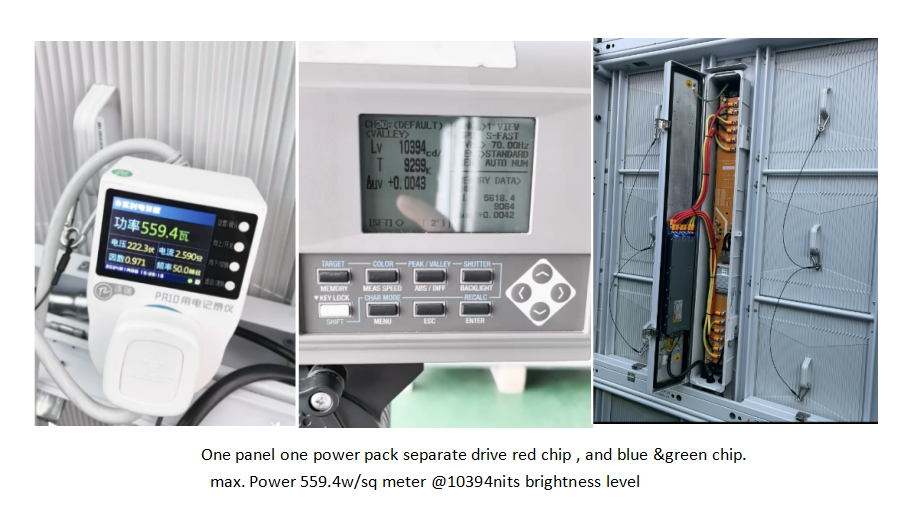

With the most advance and energy saving LED Screen , average power consumption could reduce to 80W/sqm . By keep improving the color contrast of outdoor LED Screen while keep lower down the brightness level is what we aim for from R&D design , through this way to lower down the power consumption while get a vivid colors & visibility under the strong sun in the day time .

Category:

Products

LED Display Powered By Solar Panel and Lithium battery

Contact Now

Product Description

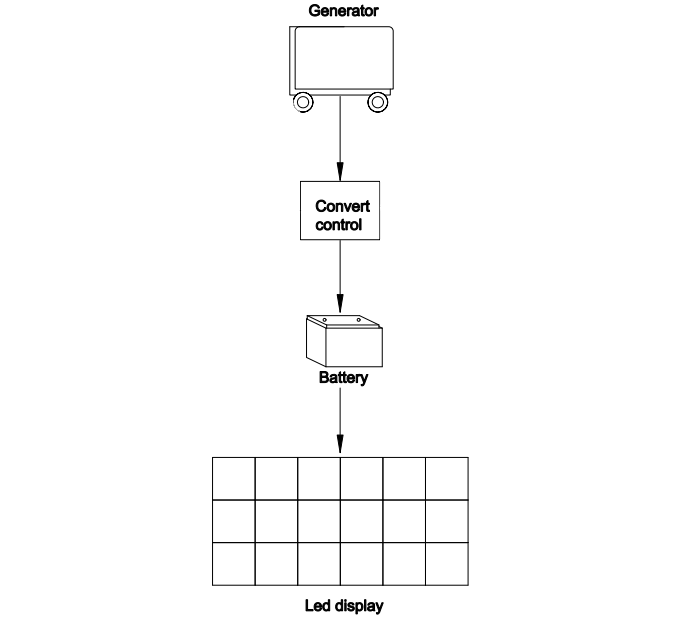

We offer hybrid power solutions to drive the LED Display , solution gathering the power source from grid , generator , solar panel . In West Africa like Nigeria , city grid power is not efficient , we designed a solution to power LED Screen by use generator and lithium battery together . As LED Screen brightness is adjusted as per day and night , the level is different . If 100% drive by generator , it cost lots of energy waste during the low brightness time like night time .By use battery drive LED Screen during the day and night , during the LED Screen off break time use generator to drive battery , full utilize each source energy efficient .Energy saving start from energy efficient is the best way .

Lithium Battery and Generator Powered LED Display

In west Africa like Nigeria , solar panel is an issue to be installed in the crowded city center , 100% drive by generator is costly on the diesel and generator maintain costly .

Learned from the EV car concept , we customized a solution solve client pain points . By use generator + lithium battery storage solution improve the power efficient to save diesel cost . With caculation , within one year , lithium battery cost can be get returned .

Brighten have a formula to exactly calculate how much power consumption for a certain LED Screen running in a full day . The sunny time , sunset time , sunrise time and night time power consumption level is different , Brighten have auto brightness control system to auto adjust the brightness level as per outdoor environment . Energy saving need a system support . In the area without electricity , every watt matters to power the LED Screen . If calculated the sizes (length * height ) * running time , it is a big figure start from 1 watt .

Technical Parameters

Series

BDO Outdoor LED Signage

SYSTEM PARAMETERS		50kw Inverter Parameters
SYSTEM PARAMETERS		Battery Parameters
Communication Port	EMS:RS485 Battery:CAN or RS485	Max Battery Voltage	850V
DIDO	DI2 DO2	Min Battery Voltage	160V
Efficiency	97%	Normal Voltage Range	320V~850V
Module Weight Dimension	35kg	Max Charge/Discharge Current	80A
Module Weight Dimension	440560183mm	PV Parameter
IP Rate	IP20	Max Power	25kW*2
Work Temperature Range	-30~60℃	Max PV Voltage	850V
Humidity	5~95%RH	PV Start Voltage	250V
Cooling	FAN	MPPT Voltage Range	200V~830V
Inverter Certificate	CE,IEC62019,IEC62477,IEC6100,EN50549	Max PV Current	(25A+25A)*2
Cabinet		On Grid
Cooling	Air conditioner	Normal Power	25kVA*2
System Weight	≈780kg	Normal Current	36.2A*2
Dimension	Approx 100014002300mm	AC voltage	400V/230V
Inverter Installation	Built-in Cabinet	AC voltage range	-20%~15%
Battery System Parameters		Frequency Range	(50Hz/47Hz~52Hz)/(60Hz/57Hz~62Hz)
Battery System Parameters		Power Factor	-0.8~0.8
Battery Module Type	51.2V	OffGrid
Battery Module Number	7	Normal Power	25kVA*2
Battery Module Dimension	442750230mm	Max Out Power	27.5KVA*2
Battery System Voltage	358.4V	Normal Current	36.2A*2
Battery Capacity	280Ah	Max Output Current	40A*2
Normal Energy	100kWh	AC Voltage	400V/230V
Battery Max Charge Current	200A	Output Voltage Harmonics	<3%(resistive load)
Battery Max Discharge Current	200A	Degree Of Unbalance	100%
Charge Voltage	392V	Frequency Range	50/60HZ
Cut-off Voltage	313.6V	Overload	(39.8A<l load≤45A/100s 45A< 1 load≤54A/100ms)*2

* Above parameters are typical values, which are adjustable according to different project reqiurements.

Related Application

Location: Lagos The Redeemed Christian Church of God
Pixel Pitch :2.9mm
Screen Size :48sqm

Location: Audi Booth Auto Show SH
Pixel Pitch :3.9mm
Screen Size :120sqm
