Outdoor Advertising LED Display

-Full aluminum design for anti corrosion
-Two layers waterproofing design to reach higher protection for front and back IP66
-Sunlight series outdoor screens design with high color contrast with low power consumption to balance visibility and power
-Use high standard material to guarantee the Outdoor LED Screen quality and lifespan

Investing in a high-quality outdoor LED screen ensures: - Long-term reliability in extreme conditions.
- Superior visual performancefor audience engagement.
- Lower TCO (Total Cost of Ownership) despite higher upfront costs.
Brand reputation protection from technical failures.

Category:

Products

Outdoor LED Displays

Contact Now

Product Description

The quality of an outdoor LED screen is critical to its performance, longevity, and overall value.Outdoor screens face harsh conditions (rain, UV exposure, temperature extremes, dust, etc.). Our Sunlight outdoor LED Screen design from following

Green energy

saving Lower

carbon emission,more green

Stable and reliable operation· Self-contained heat dissipation,

no need to install other heat dissipation equipment.

Superior structural design

Die-casting Aluminum module and cabinet,for seamless
installation and fast heat radiation.
Both totally front and rear service,easy front installation.

Fire rating up to 5VB,The module adopts two layers of

waterproofing,
improving the waterproof performance of the module.
IP66 front and back

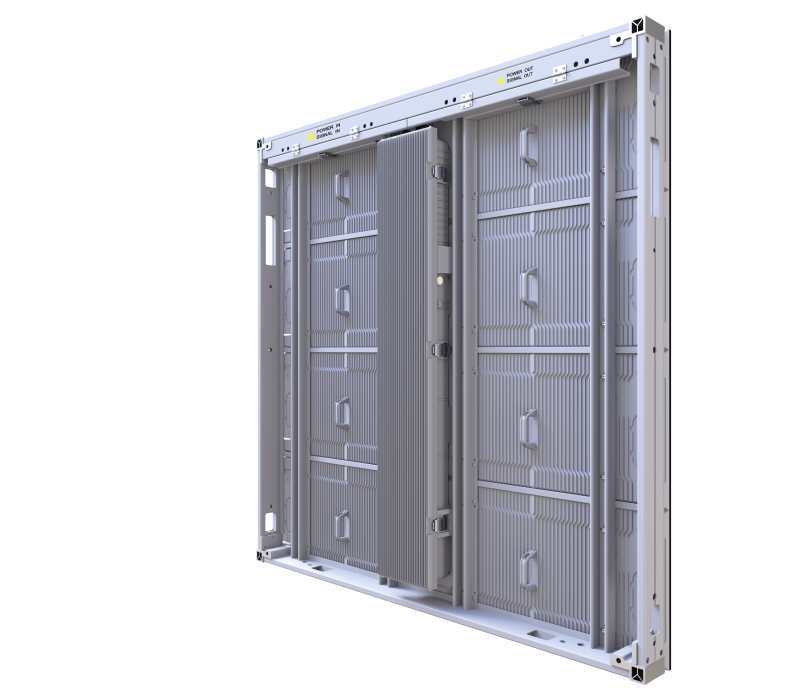

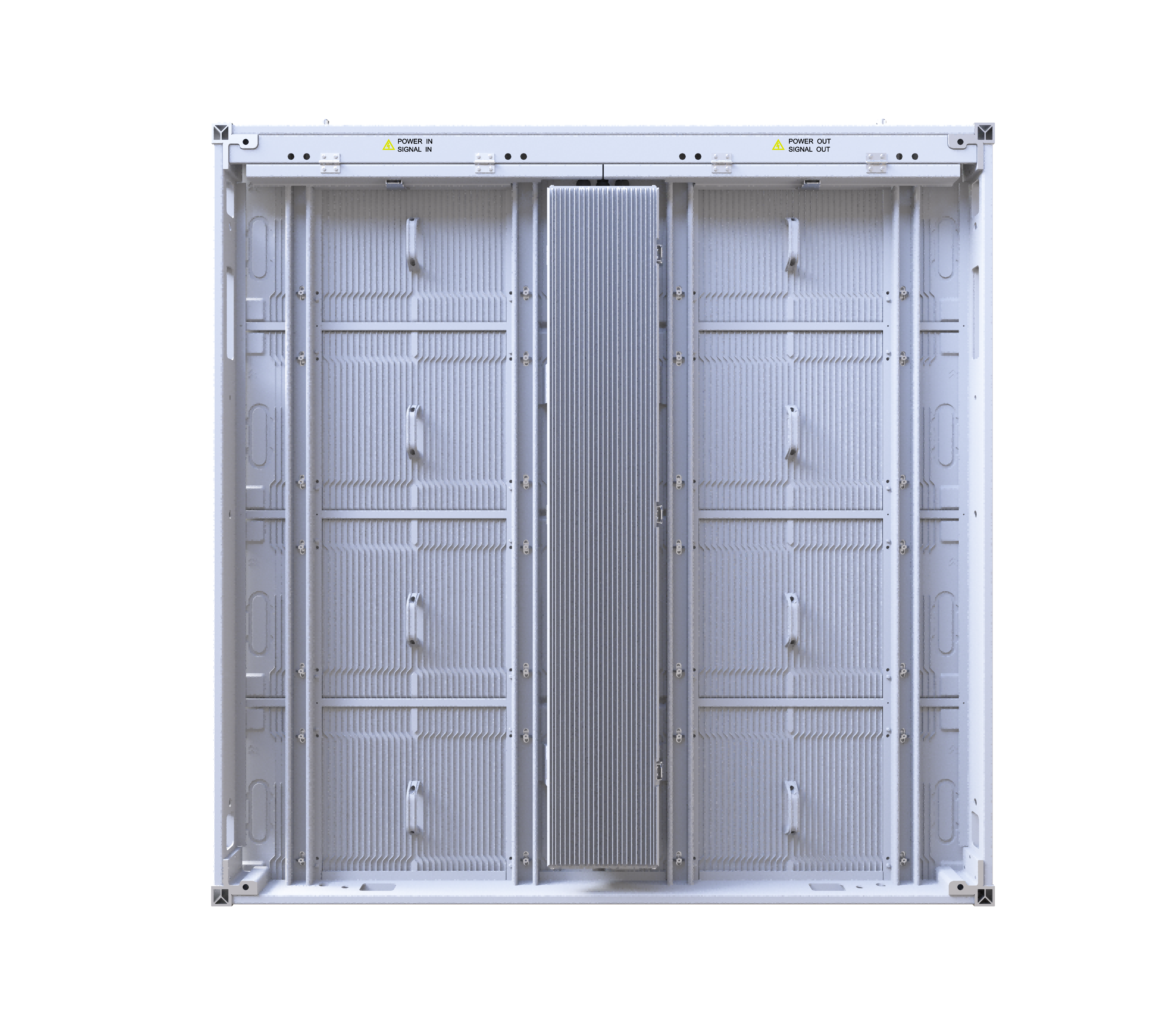

Details of Cabinet

Lightweight Cabinet 27KG/SQ.M
Cabinet Thickness 81.5MM

Technical Parameters

Model name	GP3.9	GP4.8	GP5.9	GP6.2	GP8.3	GP10.4
Pixel Pitch(mm)	3.91	4.81	5.95	6.25	8.33	10.41
Pixel Density(dot/m²)	65,536	43,264	28,224	25,600	14,400	9,216
LED sealing Type	SMD1921	SMD1921	SMD1921	SMD2727	SMD2727	SMD2727
Module Resolution(PX*PX)	128*64	104*52	84*42	80*40	60*30	48*24
Module Size(mm*mm)	500*250	500*250	500*250	500*250	500*250	500*250
Module Weight(kg)	1.7	1.7	1.7	1.7	1.7	1.7
Module Thicknees	20mm	20mm	22mm	22mm	23mm	25mm
Contrast Ratio	5,000:1	5,000:1	10,000:1	10,000:1	10,000:1	10,000:1
Drive Mode:	Common Cathode
Horizontal Viewing Angle(Deg)	160
Vertical Viewing Angle(Deg)	Upward viewing angle30° Down viewing angle 60°		Upward viewing angle20°Down viewing angle 50°
Brightness(cd/m²)	5,000-7,000			6,000-9,000
Grey Scale(bit)	14-16
Refresh Rate(Hz)	3,840
Max Power consumption(W/m²)	580W±3%/m²	540W±3%/m²	540W±3%/m²	550W±3%/m²	550W±3%/m²	550W±3%/m²
Average Power consumption (W/m²)	174W/m²	162W/m²	162W/m²	165W/m²	165W/m²	165W/m²
Cabinet Size(mm*mm)	1,000500/1,000750/1,000*1000
Cabinet Weight(Kg)	27kg/m²
Cabinet Thickness(mm)	81.5mm	81.5mm	83.5mm	83.5mm	84.5mm	86.5mm
Input Voltage(V)	AC100-240V
Working Temperature(℃)	-40~+55℃
Storage temperature range(℃)	-40~+60℃
Working humidity(RH)	10%~95%RH
Waterproof Level	IP66
Working Environment	Outdoor
Maintenance type	Front/Rear

Related Application

Location: Lagos The Redeemed Christian Church of God
Pixel Pitch :2.9mm
Screen Size :48sqm

Location: Audi Booth Auto Show SH
Pixel Pitch :3.9mm
Screen Size :120sqm
