Brighten Sport Outdoor Perimeter Banner Screen
Dimension: 1600*900*107.4mm
Pixel Pitch Outdoor: 6.67mm, 8mm, 10mm
Applications: Commercial Screen, football stadium, Perimeter LED Poster, Arena Display, Road Screen, etc.

Main Features:
High Brightness & High Refresh Rate & Wide Viewing Angle
Player Protective Design
Emergency Access Design
IP66 Front & Rear, 5VB Fireproof level
Light weight

Category:

Sports LED Display

Contact Now

Product Description

BDS perimeter banner is specifically designed SMD stadium LED display for sports stadium related application scenarios, high fresh rate, unique lifting design, flexible maintenance, high efficient heat dissipation and more amazing features. The banner LED display enriches the way of sports experience, improves the quality of sports.

Brigten Perimeter

Screen Sports Series

1600

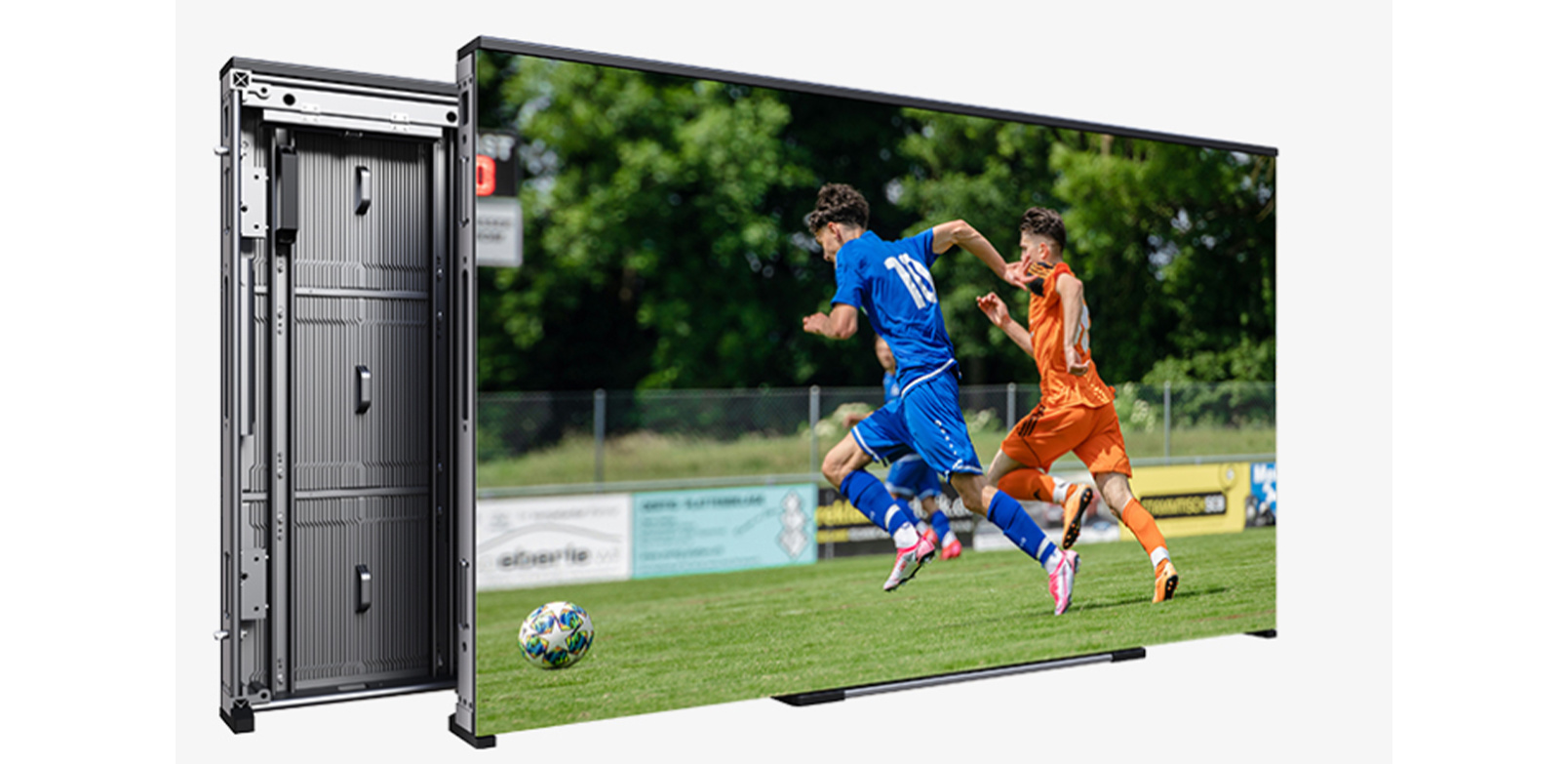

Outdoor Stadium Fixed LED Screen Display

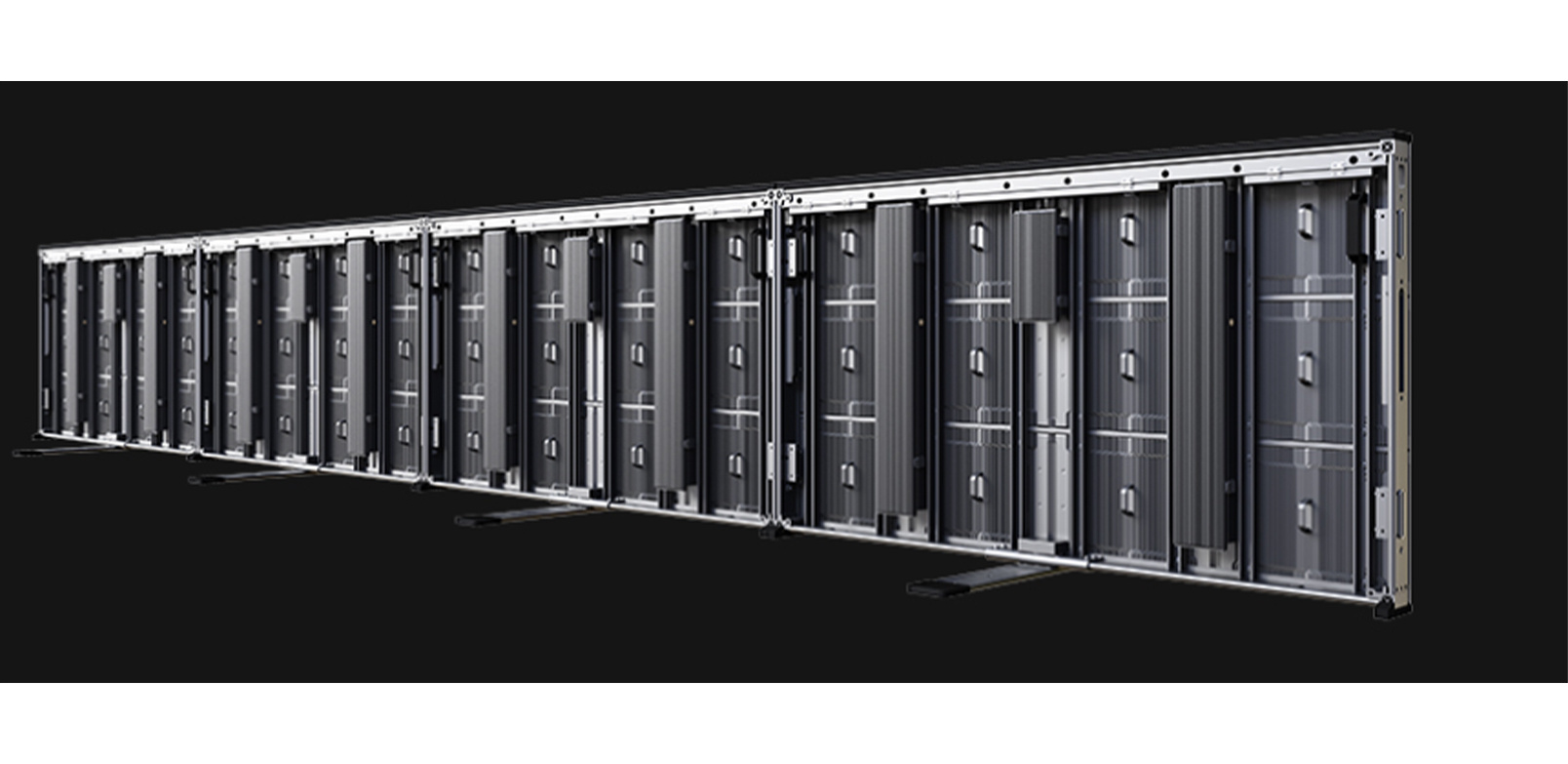

Features of Perimeter System

Sports 1600 is our ultimate solution for stadiums and sports fields.It is designed with foot stand and top safer bumper.

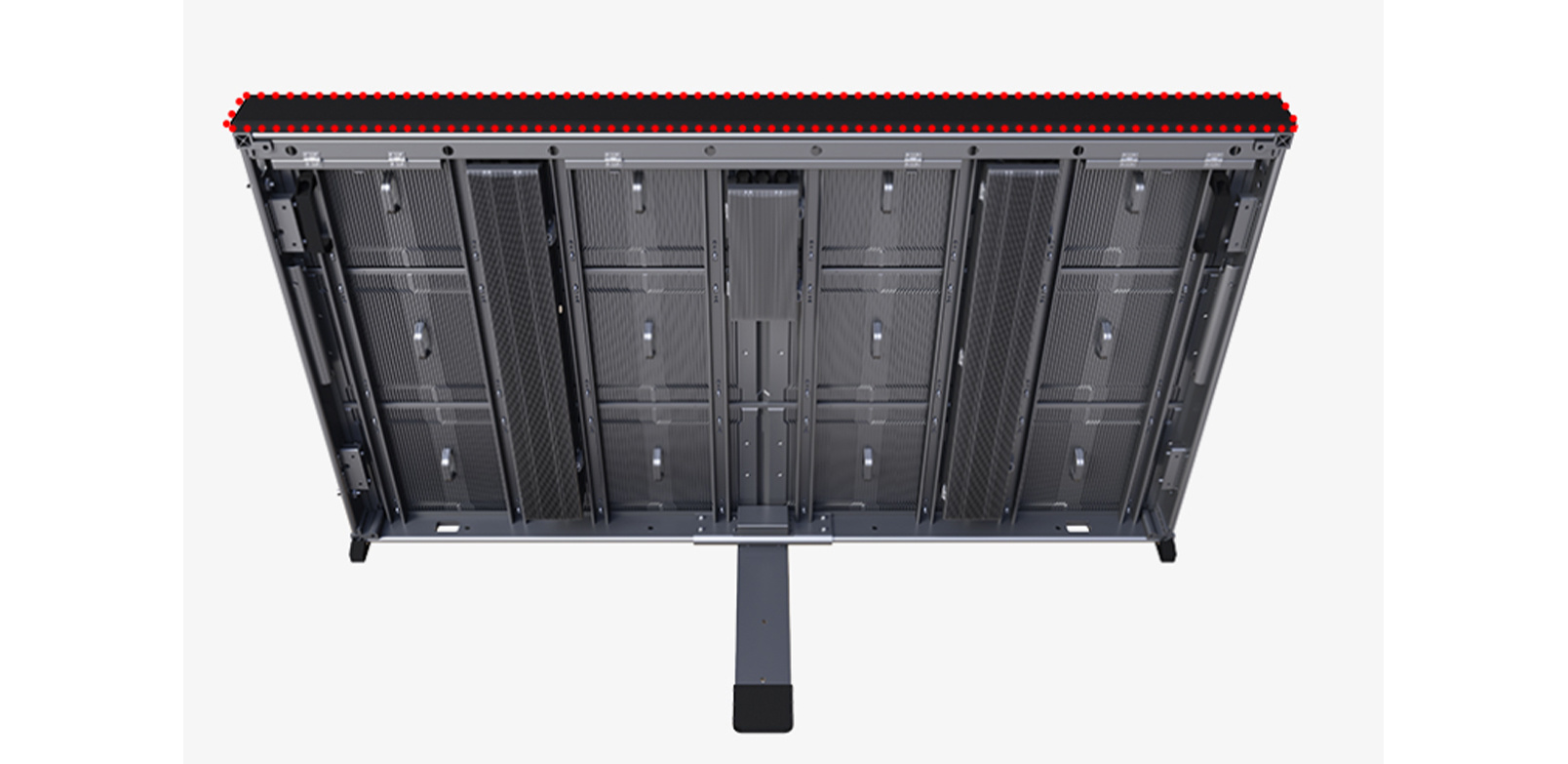

Cable Free Back Side

Screen Sports Series

1600

All cables are hidden at the Top of the cabinet,which makes the clean look and prevent disconnecting by accidents.

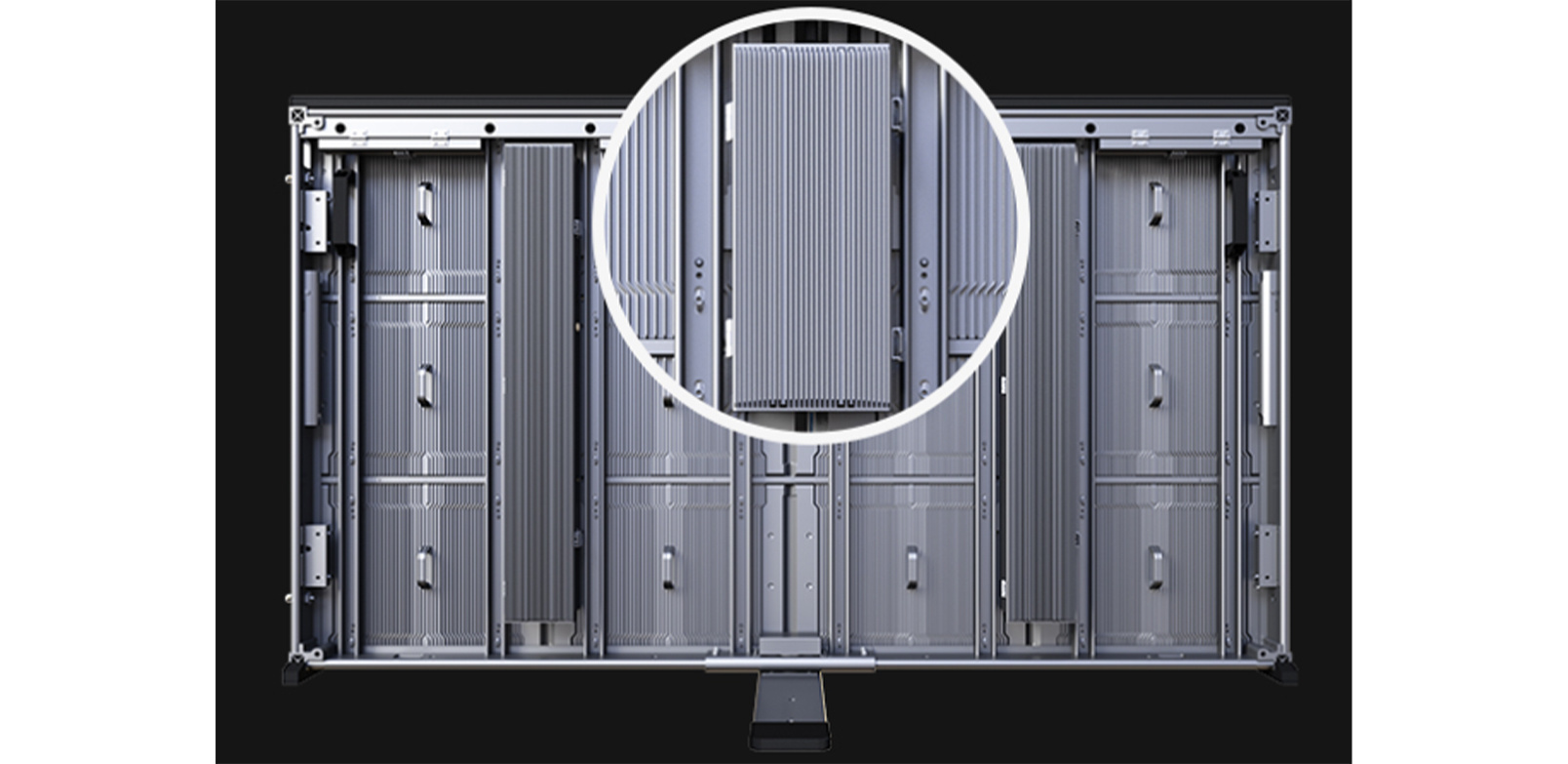

Excellent Cabinet Design

Full diecasting Aluminum module and cabinet frame not only accelerate heat dissipation;also own light weight 45kg/m;which will make the transportation and installation faster and easier.

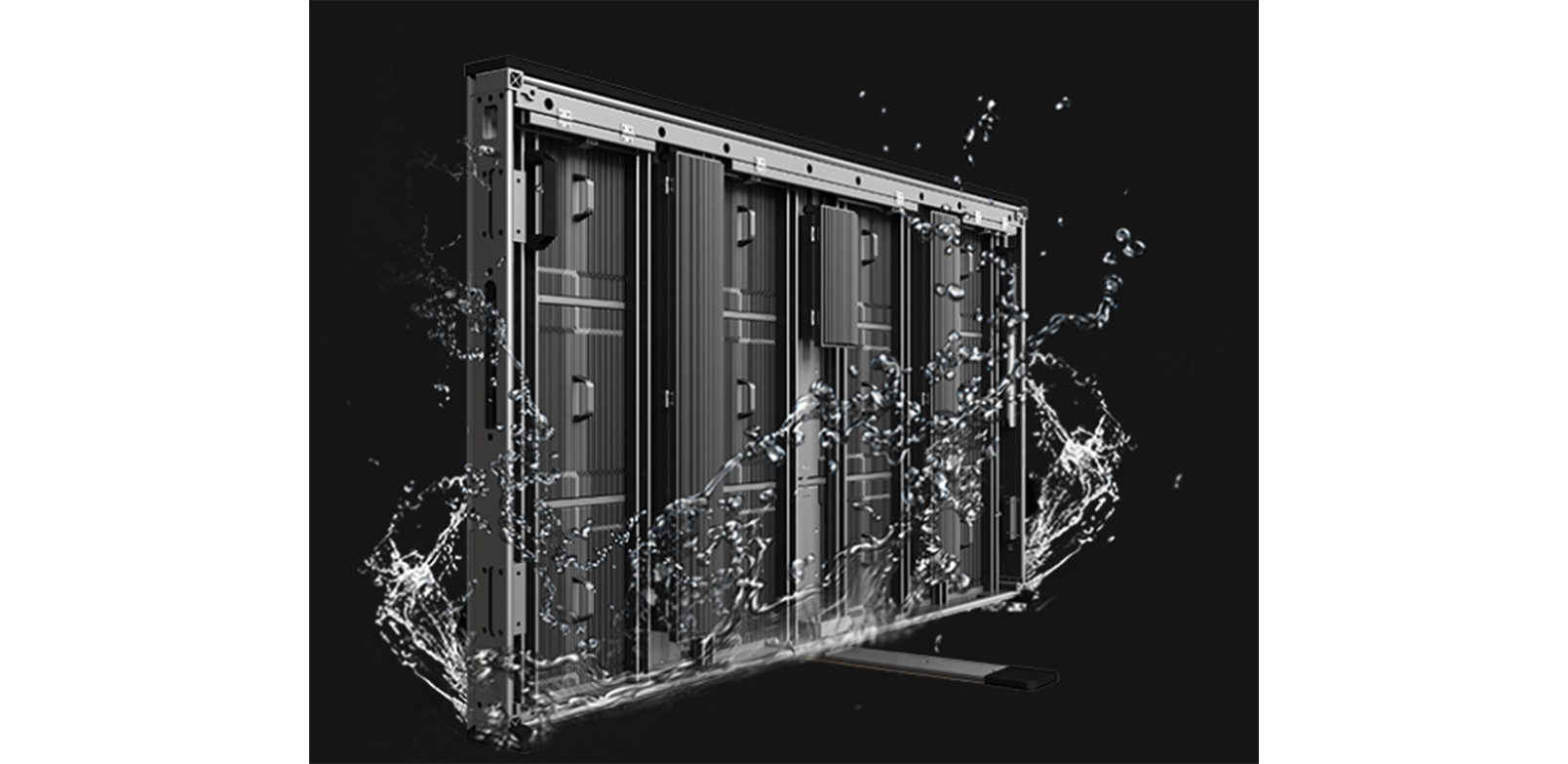

Protection grade IP66 and Fanless Cooling System

Screen Sports Series

1600

The total cabinet is IP66 front and rear,tested by TUV.It will avoid any water entry from the outside.And the fan less cooling system will isolate dust and dirt and extend the lifespan of the electronic components inside.

Technical Parameters

Series

BDS

Pixel Pitch	6.6mm	8mm	10mm
LED	SMD	SMD	SMD
Cabinet Resolution(W*H)	144*144	120*120	96*96
Cabinet Size(W*H)	960960101mm	960960101mm	960960101mm
Refresh Frame Rate	50/60Hz	50/60Hz	50/60Hz
IP Rating	IP66	IP66	IP66
Cabinet Material	Aluminum	Aluminum	Aluminum
Brightness	6000nits	6000nits	6000nits
Viewing Angle	160°/60°	160°/60°	160°/60°
Input Voltage	110-220VAC	110-220VAC	110-220VAC

* Above parameters are typical values, which are adjustable according to different project reqiurements.

Related Application

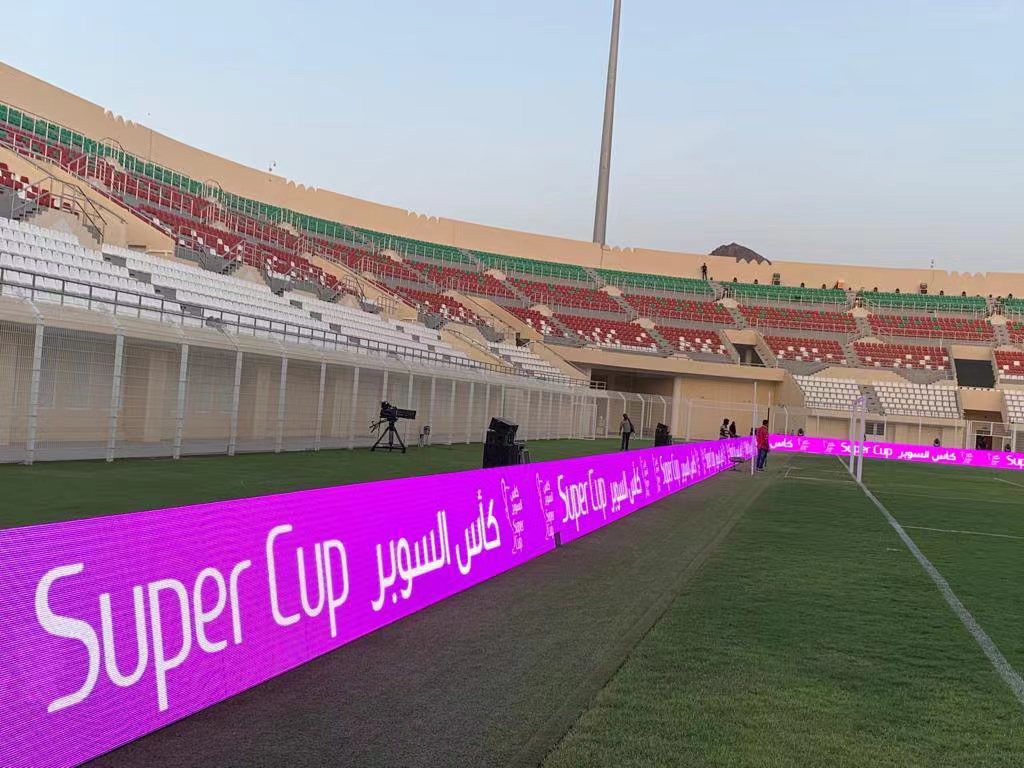

Viking Stadion in Stavanger, Norway . Vivid LED screen Scoreboard and Perimeter banner outstanding your events .

Stadium LED screen for Asia Football Confederation 2020. Superior performance shining in the Stadium ,making your events live.

Related Products

Prime Series

PS series is Micro-pitch display utilize Flip-chip-on-board technology and cutting-edge 3D inkjet printing technology to give the screen an unprecedentedly smooth touch, and also significantly improves the screen's light-emitting efficiency by 20%. The display ensures high brightness, high resolution, and long-lasting durability. Whether it's a command-and-control center, high-end commercial display, or visual data center and other professional display scenarios, the product can meet the strict requirements for high-quality display and provide users with high-quality and efficient visual solutions.

S Series

The S Series has the ability to display high-quality content in indoor environments with exceptional clarity and detail. Their flexibility in size and shape allows them to be configured to fit almost any space, at right angles or tilted to create unique and visually stunning installations. Lt provides versatile, high quality and durable solutions for a wide range of indoor video display applications.

All in One COB LED Display for Conference

All-In-One Conference Led Display is a comprehensive solution that combines all necessary components into a single, easy-to-use platform for delivering presentations or content. This setup is particularly useful for events like conferences, webinars, or seminars where multiple presenters or speakers need to be displayed simultaneously.

Horizon Mini 4 in 1 Events & Staging LED Display

Mini 4 in 1 have been approved be the best technology choice for events model below 2.9mm . The biggest pain points for events panel like 2.5mm , 1.5mm the LED lamps are very tiny , very fragile and easy damage , while events assemble and disassemble , also the road transportation will damage the LED lamp easily , because it is tiny chips , maintain give a big challenge . Mini 4 in 1 as 4 lamps in one soldering plate ,which have bigger soldering plate for bigger strength can suffering 14kg outer-force , solved the biggest pain points for fine pitch event models , We developed the color contrast of 4 in 1 , the color performance is vivid ,viewing angle almost 180 degree could support the high profile conference presentation request.
